MR 7700
Unmatched performance and precision
MR 7700
Unmatched performance and precision
Experience breakthrough innovation in 3.0T imaging with the unique design of the Philips MR 7700 imaging system, enhanced with XP gradients and artificial intelligence (AI)*. The system is built to address a pressing need to deliver on the clinical expectations of today, and to facilitate the most demanding research programs.
The MR 7700 provides high accuracy, power, and endurance to support confident diagnosis for every patient. It is the system of choice for highest quality diffusion imaging and advanced neuroscience.
Extend your scanning capabilities with a fully integrated multi-nuclei imaging and spectroscopy solution to explore new clinical pathways without sacrificing clinical imaging workflow or wide-bore patient comfort.
What’s more? The MR 7700 promises a great experience for both users and patients through the ease-of-use features of a well-designed clinical 3.0T scanner together with a no compromise workflow. Now scientists and clinicians alike can schedule without conflict.
XP gradients with high accuracy, power, and endurance
Facilitate the most demanding research programs
Supporting confident diagnosis for every patient
Clinical image gallery
- IAC DWI XD TSE b1000
- C-spine IRIS ZOOM b800
- Brain exam with SWIp
- Liver DWI EPI b1000
- Hippocampus IRIS ZOOM b1000
- Liver Comparison DWI EPI b1000
- Shoulder comparison Compressed SENSE
- Brain comparison Compressed SENSE

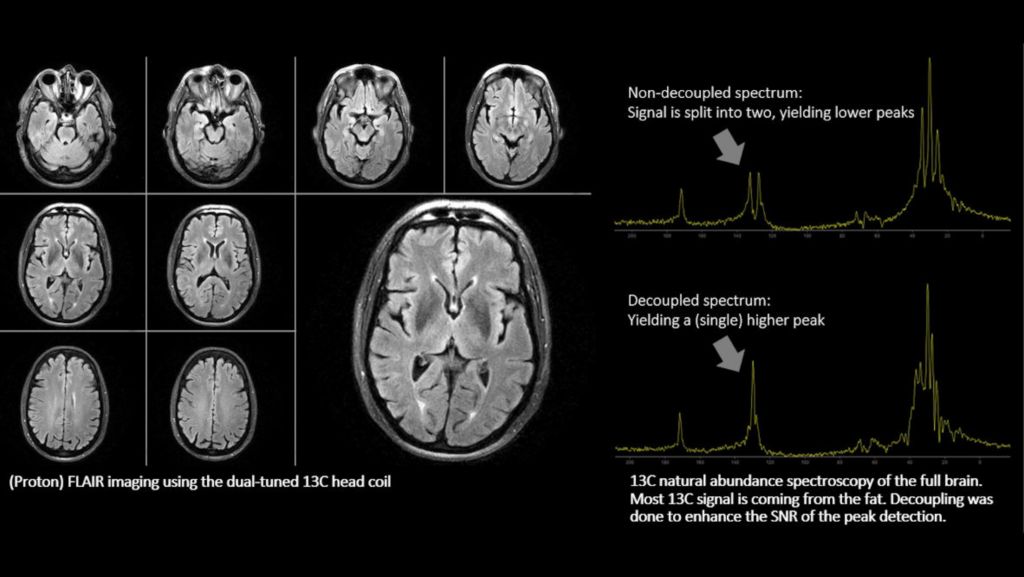

- Multi Nuclei_Brain exam 1H and 13C

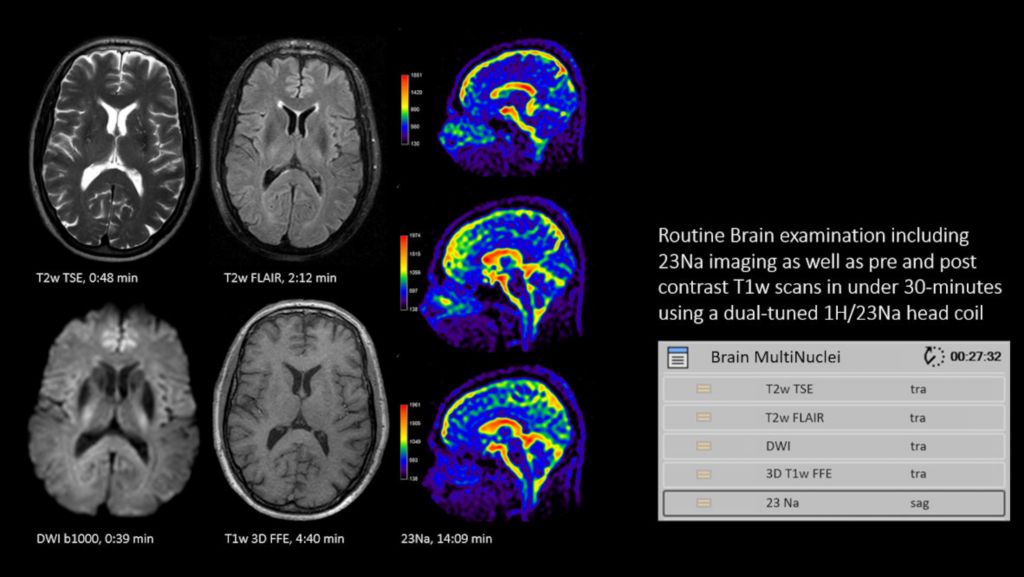

- Multi Nuclei_Brain exam 1H and 23Na

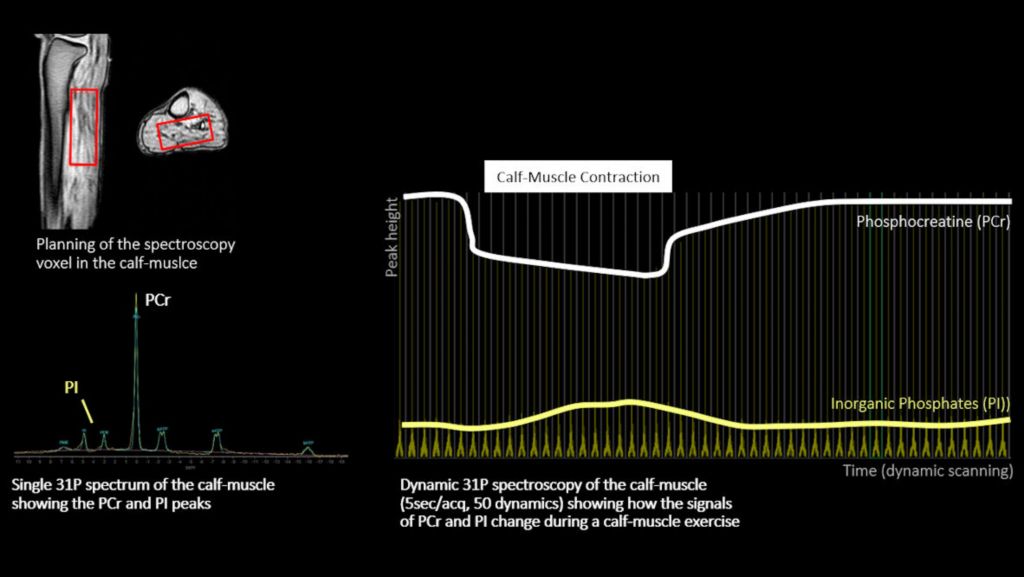

- Multi Nuclei Calf muscle dynamic 31P
- C-Spine Comparison IRIS ZOOM b800
- CE MRA mDIXON XD
- fMRI Comparison
- 4D FreeBreathing
- Brain comparison MultiBand SENSE
- Multi Nuclei Knee exam 1H and 23Na
- DTI 196 directions FODs
- Brain Comparison DWI EPI b10.000
- DTI_Comparison 96 directions
- 3D APT 3D T1w TFE with gado
- DTI 196 directions
- HeadNeck DWI TSE b800
- fMRI
- DWI EPI b10.000
- 4D TRANCE
- Prostate DWI EPI b1000
- Multi Nuclei Cardiac 31P
- C-Spine comparison Compressed SENSE
- Brain Black Blood imaging
Features
Higher diffusion IQ, for all anatomies
Benefit from up to 35% faster echo-planar (EPI) diffusion imaging¹, with the same spatial resolution.
Or achieve up to 35% higher signal-to-noise ratio (SNR), in similar scan time². The additional SNR opens the possibility to scan with increased spatial resolution, enhancing clinical confidence.
Enjoy robust suppression of motion artifacts in diffusion TSE, with up to 15% shorter scan times¹.
Exceptional gradient linearity limits distortion, even in large fields-of-view (FOV), and enables small lesions to become visible, benefiting applications like total body diffusion.
Excel in neuroscience
Excel in neuroscience with high gradient amplitudes of 65 mT/m and high slew rates of 220 T/m/s simultaneously, on each cartesian axis.
Achieve up to 20% more fMRI sequences, with the same spatial resolution¹. Or acquire 50% more DTI directions in the same scan time³, by adding MultiBand SENSE acceleration.
Due to efficient heat management (Grms of 27mT/m), the system can operate with the high average gradient amplitudes, required for DTI and fMRI imaging, without slowing down or overheating.
Easy data transfer supports enhanced analysis outside of the default reviewing stations.
Innovative imaging solutions and workflow
Reach new levels of precision in anatomical and functional clinical imaging with a wealth of unique features such as 3D APT, black blood imaging, and susceptibility weighted imaging (SWIp).
Achieve excellent patient-centered productivity via technology to guide and coach where required, and automate when possible. These workflow efficiencies help to keep exams on schedule and create a positive staff experience.
Addition of our Ambient Experience solution will enhance your patients’ scanning experience via positive distractions by incorporating dynamic lighting, projection, and sound.
Specifications
- RF Receive
- Number of independent receive channels
- Channel independent
- Location of analog-to-digital converter (ADC)
- Inside the coil, close to receive channels
- Signal chain from coil to reconstructor
- Fully digital
- dStream
- Yes
- RF transmit
- Parallel RF transmission
- Yes
- Output power
- ≥ 2 x 18 kW
- Siting information
- Minimum siting requirement
- 3.4 m x 5.3 m
- Ceiling height (minimum)
- 2.56 m
- SmartWorkflow
- Guided exam set-up
- Yes
- Auto patient centering
- Yes
- Touchless respiratory-triggering
- Yes
- In-room exam start
- Yes
- ScanWise Implant
- Yes
- Automated planning and scanning
- Yes
- Automated patient coaching
- Yes
- Automated post-processing
- Yes
- XP gradients
- Max. amplitude for each axis
- 65 mT/m
- Max. slew rate for each axis
- 220 T/m/s
- Magnet system
- Field strength
- 3.0T
- Bore design
- 70 cm
- Magnet weight
- 4800 kg
- Typical homogeneity V-RMS
- ≤ 0.9 ppm (at 45 cm DSV)
- HeliumSave technology
- Yes (zero boil-off)
- Maximum FOV
- 55 cm
- Cryogen boil-off rate
- 0 liter/hour (under regular scanning conditions)
Accessories and options
Documentation
Disclaimer
* According to the definition of AI from the EU High-Level Expert Group.
1 Compared to Ingenia Elition X with Vega HP gradients.
2 Compared to Ingenia Elition X with Vega HP gradients, measured in brain white matter.
3 Compared to Philips DTI/fMRI scans without MultiBand SENSE.
4 Measured from start of first scan to end of last reconstruction. Includes 1H (T2w TSE, T2w FLAIR, SSh DWI, and 3D T1w FFE pre&post) + 23Na (with a voxel size <= than 4mm isotropic).
5 Compared to Philips scans without Compressed SENSE.
