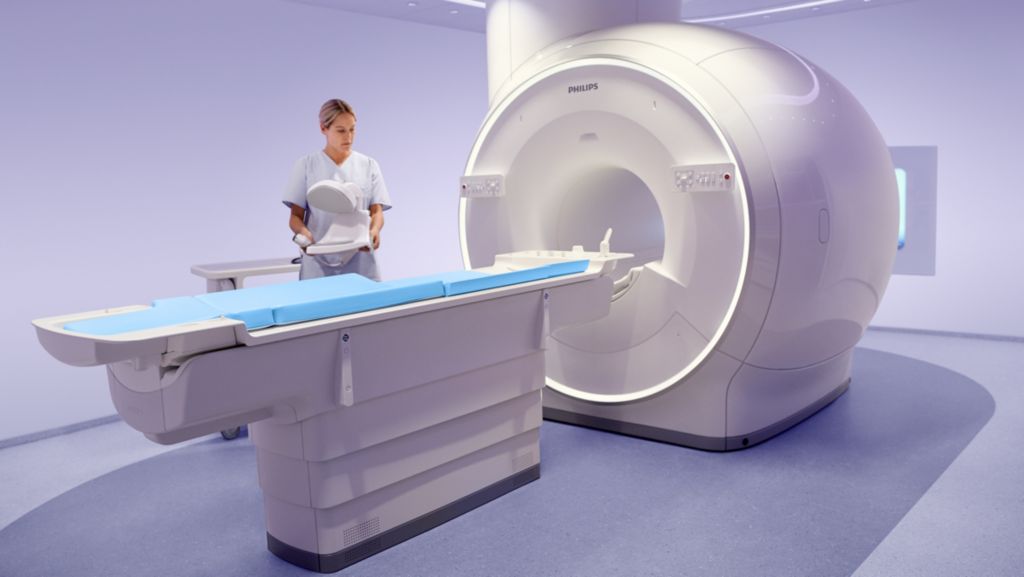

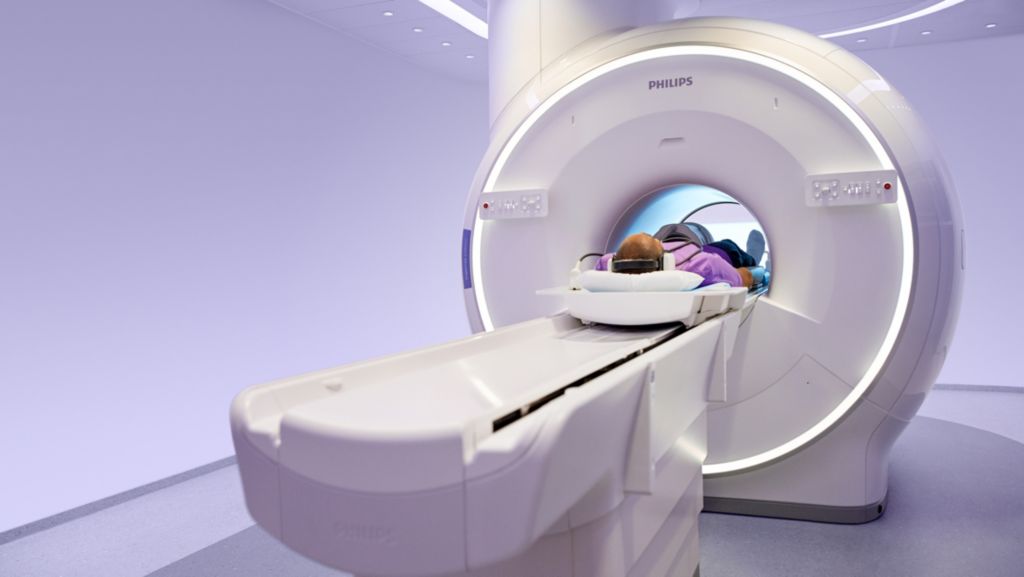

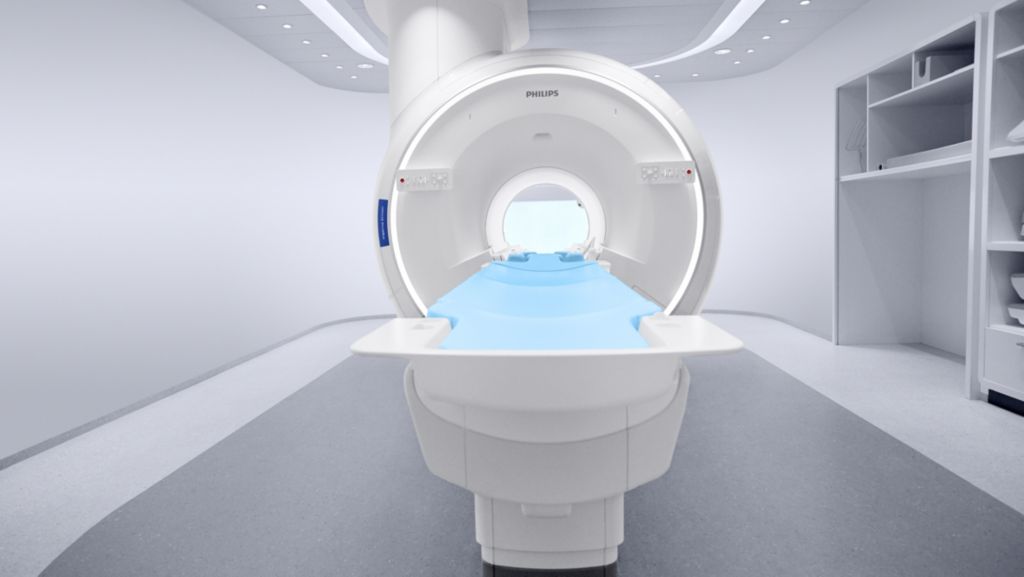

Ingenia Elition 3.0T S
3.0T imaging at your fingertips

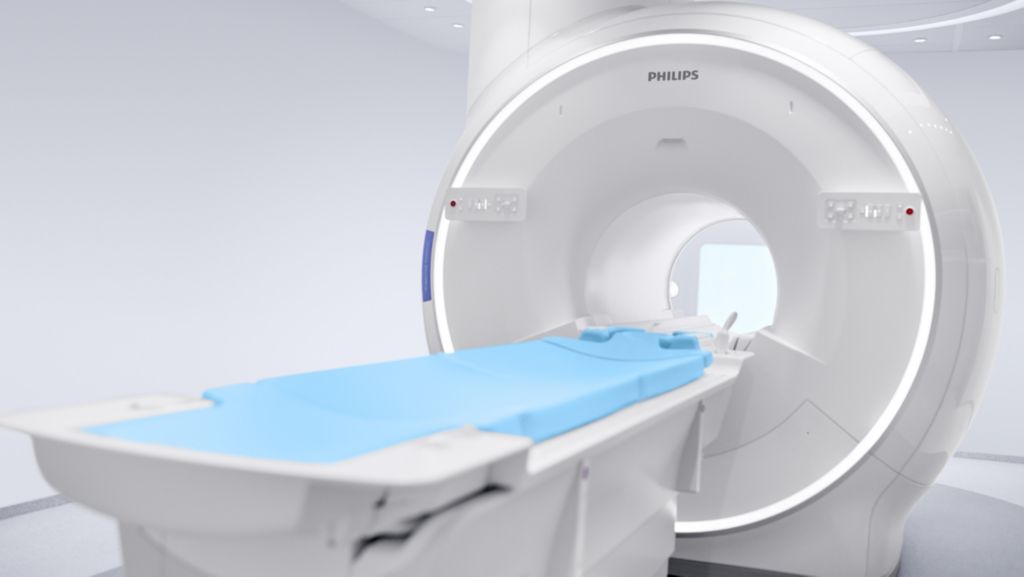

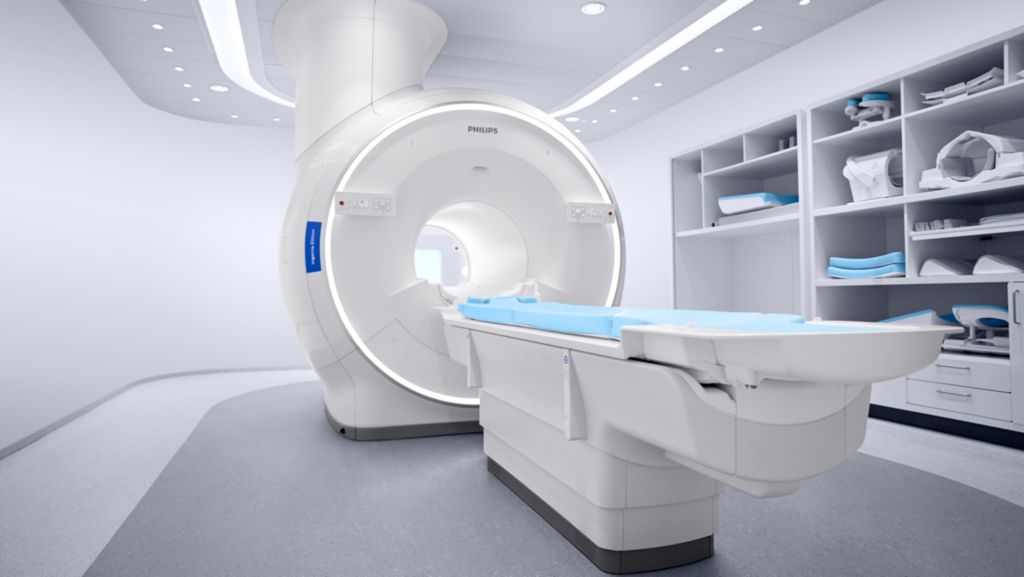

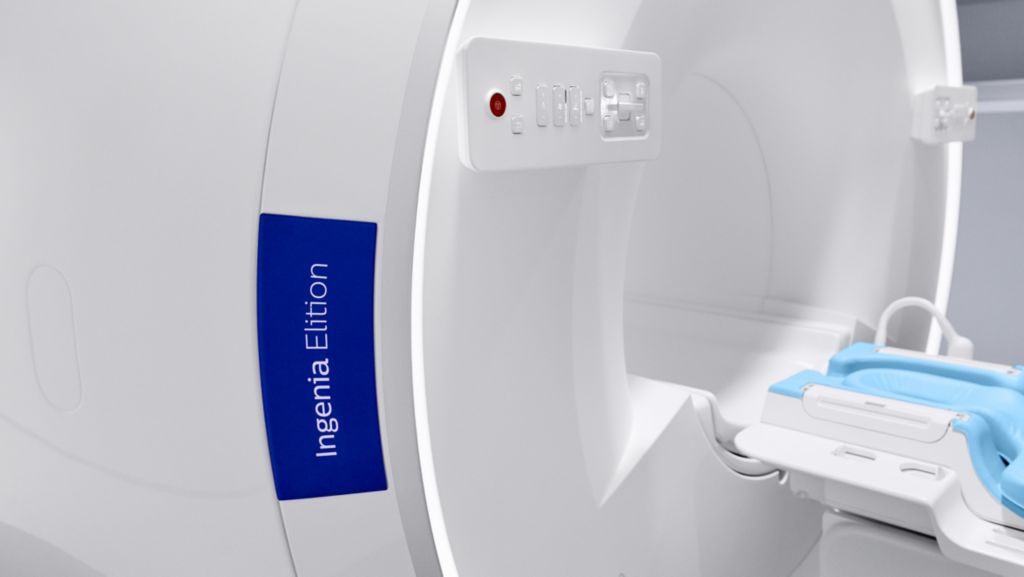

Ingenia Elition 3.0T S
3.0T imaging at your fingertips

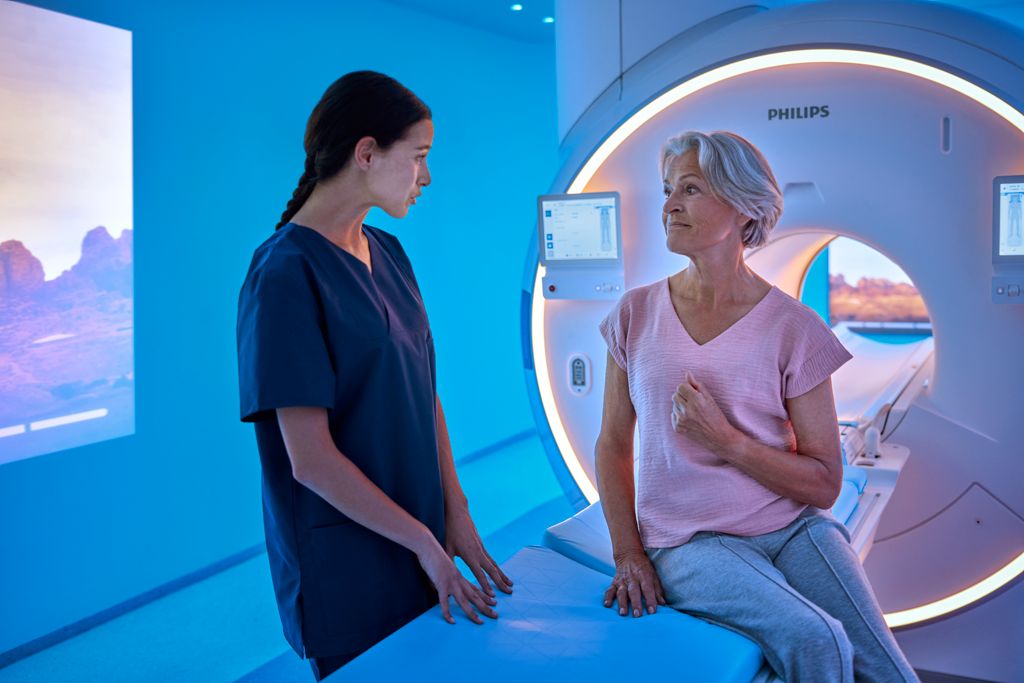

The Ingenia Elition S delivers superb image quality and performs MRI exams up to 50% faster¹. Compressed SENSE accelerates in both 2D- and 3D scanning. High productivity is achieved with the help of imaging capabilities such as SmartExam⁷, 4D Multi-Transmit and ScanWise Implant⁹. These advances have been made possible by a combination of new gradient and RF designs, plus acceleration technologies like Compressed SENSE. Furthermore, the Ingenia Elition S offers an immersive audiovisual experience to help calm patients and guide them through exams, enhancing the MR experience.
Clinical image gallery

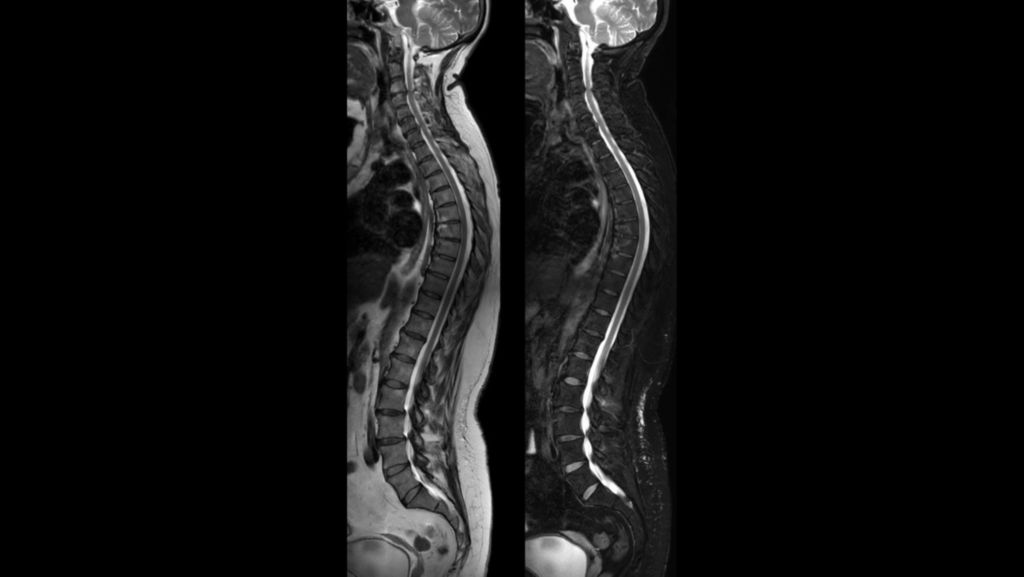

- T2w mDIXON XD TSE

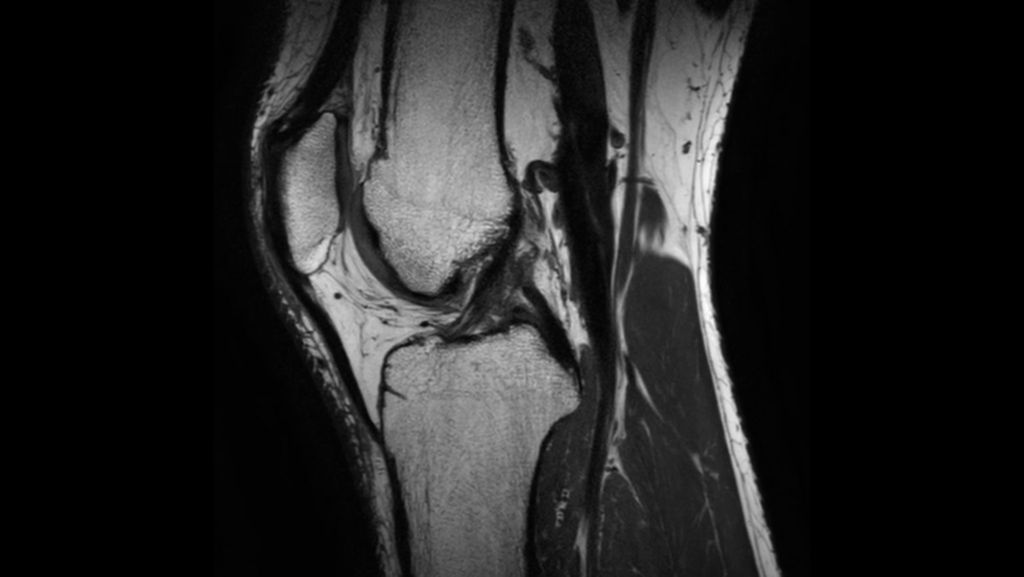

- PDw TSE
- SWIp
- T1w TSE

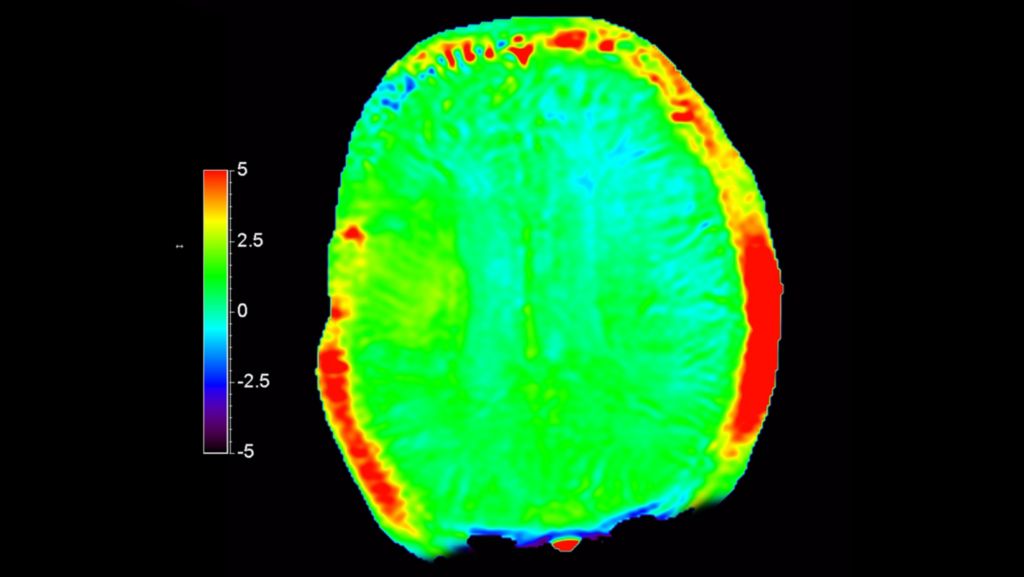

- 3D APT post-operative
- T2w mDIXON XD TSE with Compressed SENSE
- T2w SPAIR MultiVane XD
- 3D VIEW - PDw TSE
- Coronal T2w TSE - Two stations

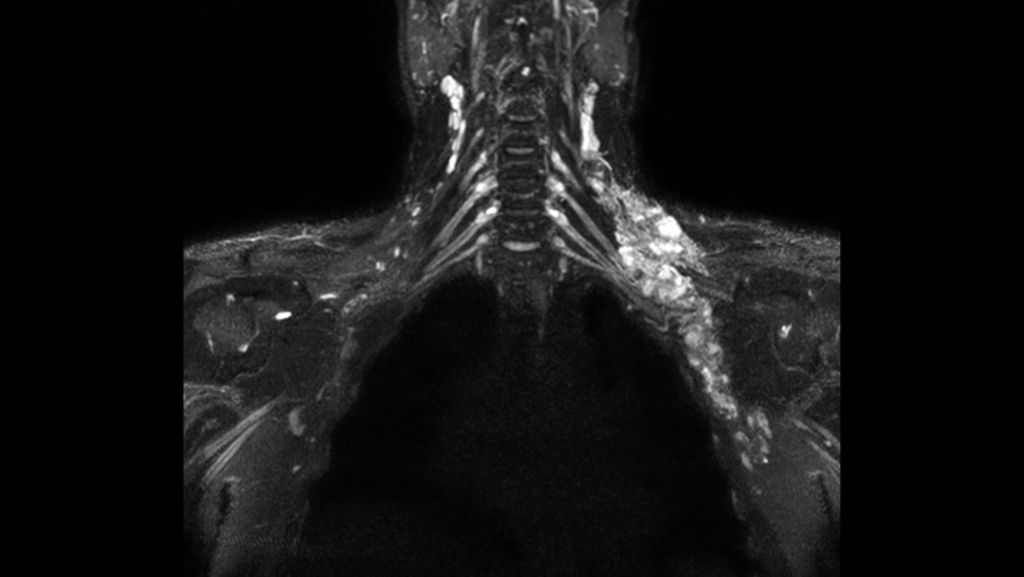

- 3D NerveVIEW
Features
Up to 60% higher spatial resolution
Fully redesigned gradients combined with Compressed SENSE acceleration technology allow up to 60% higher spatial resolution² in the same scan time, revealing more details. This allows you to switch from multi-orientation 2D imaging to a single high-resolution 3D efficient scan.
Automate your scan planning
SmartExam⁷ supports reproducible planning results for over 80% of procedures. It uses adaptive software that automatically plans scanning geometries based on your validated scanning preferences. This lets you standardize your MRI exam process, across different Philips MRI consoles.
The basis of 3.0T image quality – Multi-Transmit RF
Philips was the first company to introduce Multi-Transmit RF to 3.0T imaging in 2008. MultiTransmit, with two different RF amplifiers, is standard for Philips 3.0T imaging. This stems from our belief that it is essential to support 3.0T image quality throughout the body.
Specifications
- Magnet system
- Field strength
- 3.0T
- Bore design
- 70 cm
- Magnet weight
- 4800 kg
- Typical homogeneity V-RMS
- ≤ 0.9 ppm (at 45 cm DSV)
- HeliumSave technology
- Yes (zero boil-off)
- Maximum FOV
- 55 cm
- Cryogen boil-off rate
- 0 liter/hour (under regular scanning conditions)
- RF transmit
- Parallel RF transmission
- Yes
- Output power
- ≥ 2 × 18 kW
- RF Receive
- Number of independent receive channels
- Channel independent
- Location of analog-to-digital converter (ADC)
- Inside the coil, close to receive elements
- Signal chain from coil to reconstructor
- Fully digital
- dStream
- Yes
- Siting information
- Minimum siting requirement
- 3.4 m x 5.3 m
- Ceiling height (minimum)
- 2.56 m
- SmartWorkflow
- Guided exam set-up
- Yes
- Auto patient centering
- Yes
- Touchless respiratory-triggering
- Yes
- In-room exam start
- Yes
- ScanWise Implant
- Yes
- Automated planning and scanning
- Yes
- Automated patient coaching
- Yes
- Automated post-processing
- Yes
Related products
- The Philips Ingenia Elition solution offers cutting-edge MR imaging techniques, while setting new standards for clinical research in 3.0T imaging based on gradient- and RF designs. The Ingenia Elition delivers on superb image quality, and performs MRI exams up to 50% faster¹. Fast overall exam-time is achieved by improving patient handling setup time at the bore with the touchless guided patient setup, combined with accelerations in both 2D- and 3D scanning. Furthermore, the Ingenia Elition offers an immersive audio-visual experience to calm patients and guide them through MR exams.
Disclaimer
1. Compared to Philips scans without Compressed SENSE.
2. In isotropic 3D MSK VIEW scans, compared to Philips scans without Compressed SENSE.
3. Adaptive-C-SENSE technology used by SmartSpeed won the Fast MRI Challenge hosted by Facebook and New York Langone Health in 2019.
4. Compared to Philips SENSE.
5. On average, measured across a sample of sited from Philips MR Installed Base.
6. Compared to a workstation.
7. SmartExam is not available to patients with MR Conditional implants.
8. Compared to using a standard mattress.
9. Only for use with MR Safe or MR Conditional Implants by strictly following the Instructions For Use.
