Zenition 10
Mobile C-arm with Flat Detector
Zenition 10
Mobile C-arm with Flat Detector
Power the future of routine surgeries with Philips Image Guided Therapy Mobile C-arm System 1000 – Zenition 10. This Flat Detector (FD) system offers high quality imaging, high uptime and an efficient workflow in a powerfully compact design for your daily mix of orthopedic, trauma and other procedures.
Clinical image gallery
Features
Fast and personalized IQ for consistency
One-click procedure-specific protocols can set the required image quality parameters without applying overly high X-ray dose according to the ALARA principle. These imaging parameters can be further customized with user profiles. Simply select a choice from a predefined list of system and image quality preferences, based on contrast, sharpness, blur and noise.
Increase utilization for diverse patients
Zenition 10 supports a broad mix of surgical procedures, including orthopedic, trauma, spine, pain management, peripheral vascular, abdominal, urology and general surgical procedures. The versatile design features an excellent C-arm with high C-arm depth and large angulation range, allowing you to image a diverse range of patients.
Reduce miscommunication with Unify workflow¹
Imaging becomes easier with the navigational aids following the principles of Unify workflow. This workflow brings intuitive control and handling to the Zenition 10, enhancing teamwork. Features of the Unify workflow include ClearGuide and color-coding. These can reduce miscommunication during imaging to help surgical teams focus on the patient rather than technical discussions. With its uniform design and user-friendly controls, operators quickly feel comfortable using the system.
Specifications
- X-ray generation
- X-ray generator
- Monoblock 40 KHz high frequency generator
- X-ray tube
- Fixed Anode (tube)
- Maximum generator output
- 2.1 kW
- Flat detector
- Flat detector
- Trixell amorphous silicon detector
- Matrix size
- FD11: 1024 x 1024 pixels
- Detector Area
- FD11: 20 cm x 20 cm (7.9" x 7.9")
- Pixel pitch
- 200
- Connectivity
- Digital video out (optional)
- 2 DVI connectors left and right monitor
- USB storage
- PNG, MP4, BMP
- Advanced DICOM/IHE package (optional)
- Modality Worklist Management, Modality Performed Procedure Step, Storage Commit, DICOM query/retrieve
- Geometry
- C-arc depth
- 73 cm / 29"

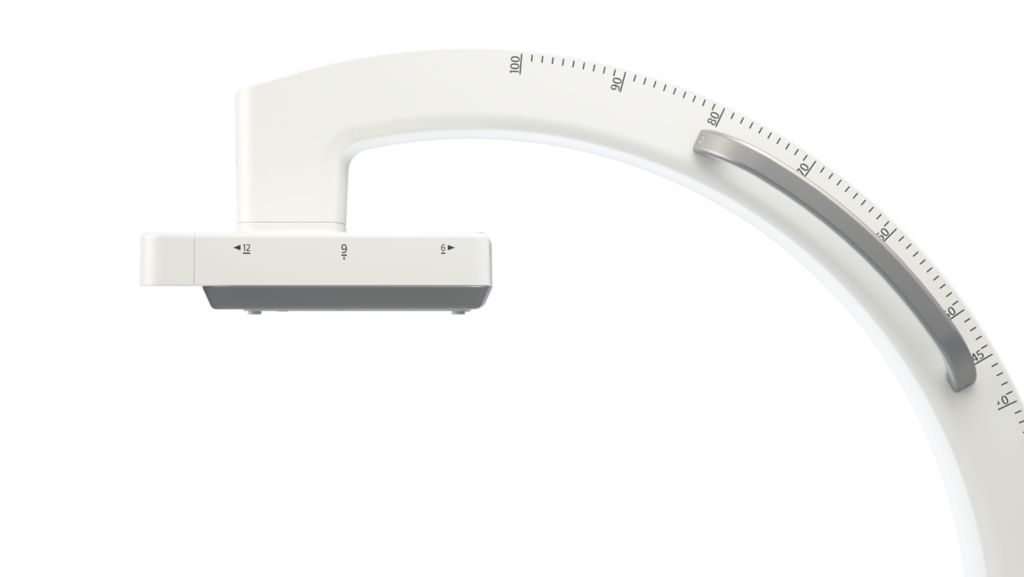

- C-arc
- Color coded brakes, fully counterbalanced C-arc
- Source Image Distance
- 100 cm / 39.4"
- Angulation
- 150° rotation (+100° / -50°)
- Lowest lateral position
- 106 cm / 41.7"
Related products
- Experience exceptional imaging clarity and flexibility for performing a wide variety of cases with our fourth generation Flat Detector systems. Part of the Zenition mobile C-arm family – a series of harmonized mobile C-arm that offers proven ease of use and future-fit capabilities.
- Point-and-shoot simplicity and reliable uptime make the Zenition 50 mobile C-arm with image intensifier the ideal systems for intensive use in interventions and surgeries. Part of the Zenition mobile C-arm family – a series of harmonized mobile C-arms that offers proven ease of use and future-fit capabilties.
Disclaimer
Zenition mobile C-arm systems are available for sale in a limited number of countries. Please check with your local representative for availability in your market. Zenition 10 mobile C-arm system is not for sale in the USA.
1. Results obtained during user tests performed in November 2013 by Use-Lab GmbH, an independent company. The tests involved 30 USA based clinicians (15 physicians teamed up with 15 nurses or X-ray technicians), who performed simulated procedures using Philips mobile X-ray systems in a simulated OR environment. None of them had worked with each other before.
