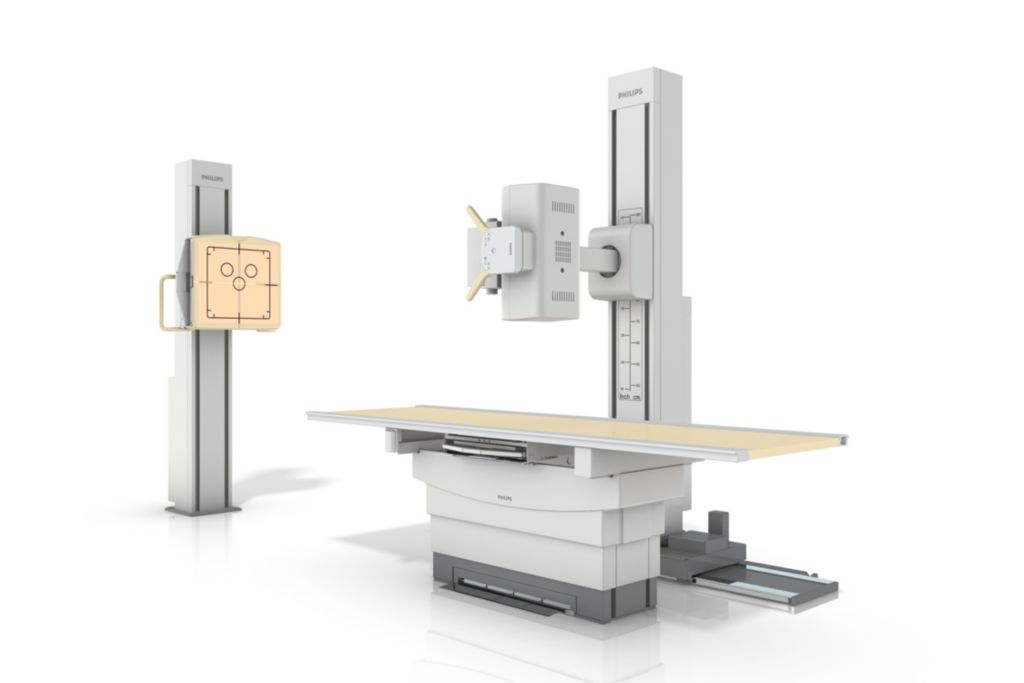

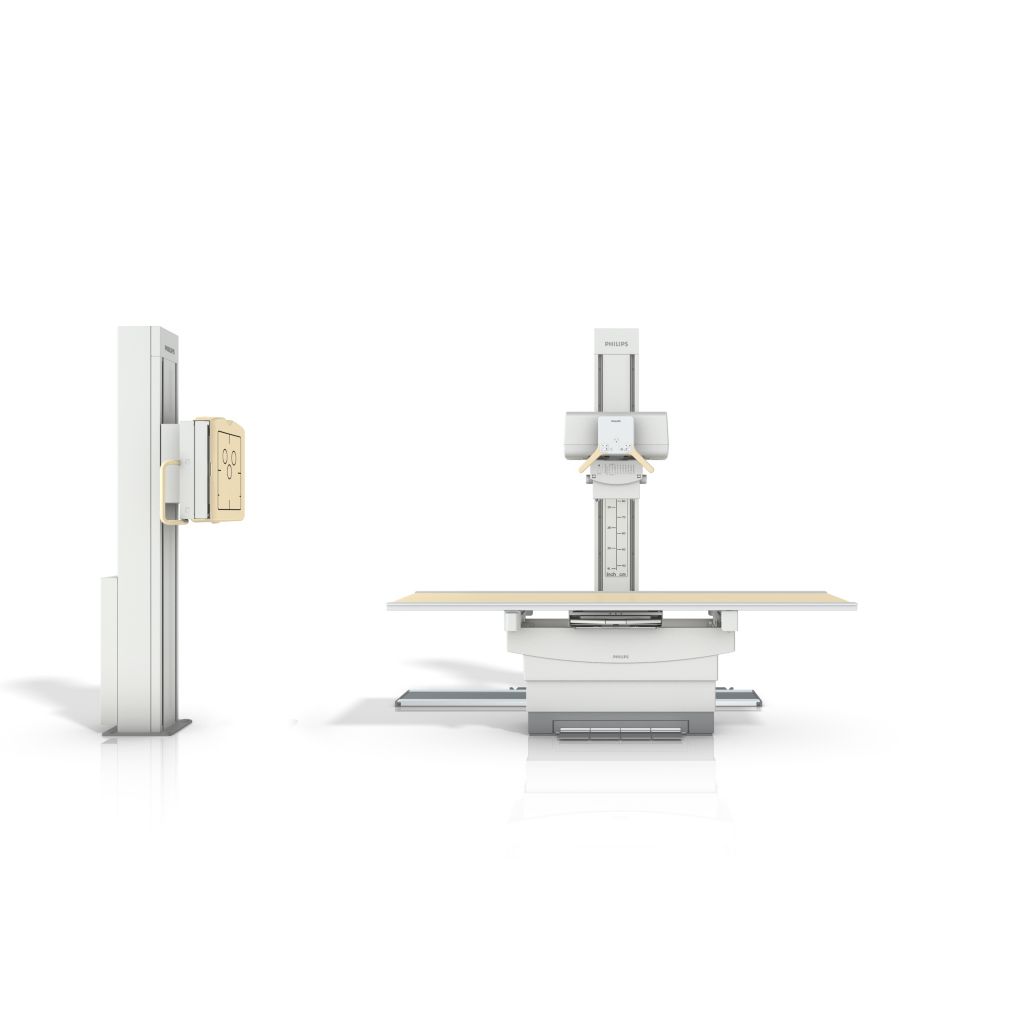

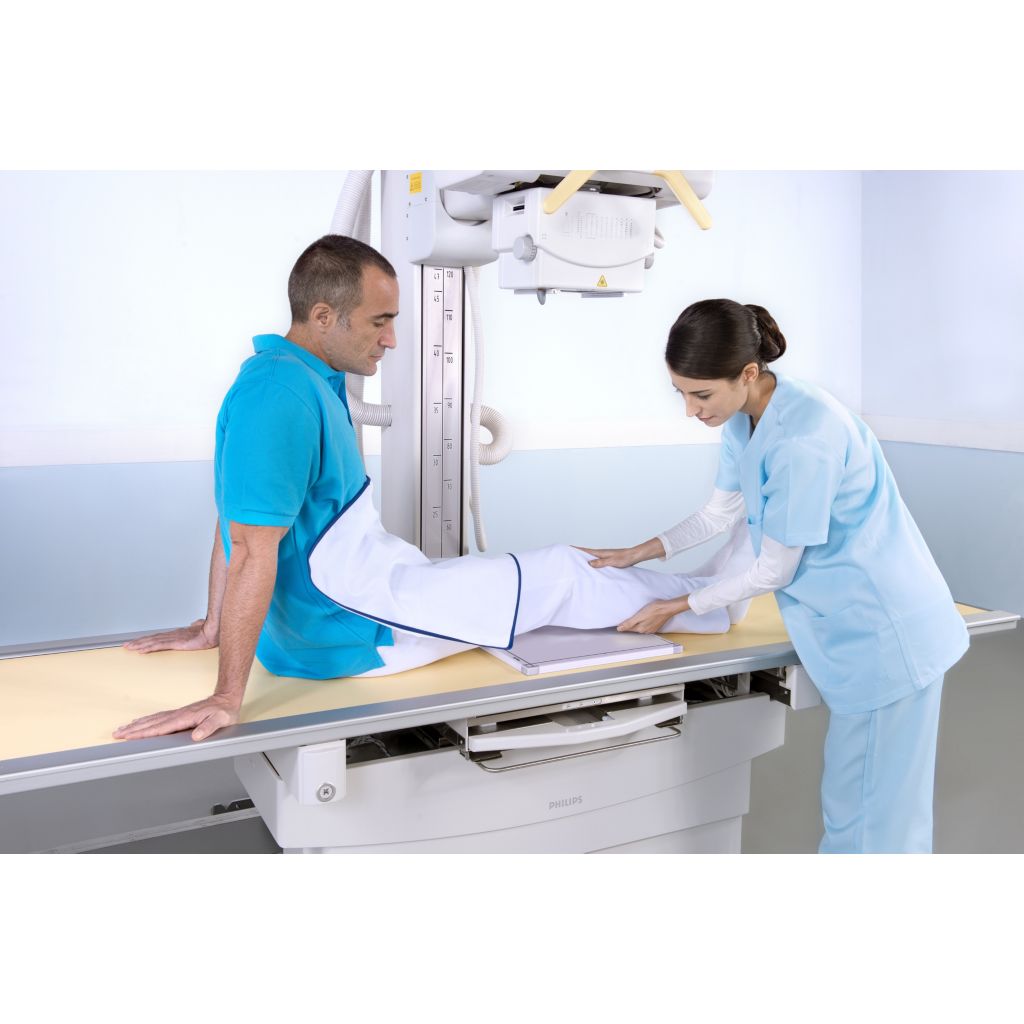

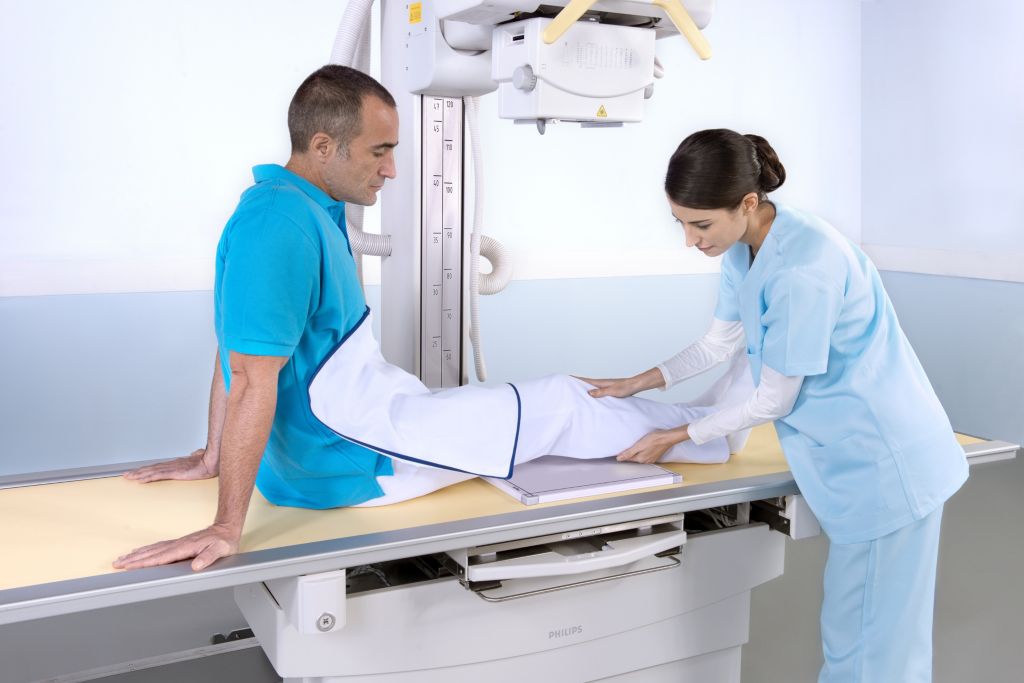

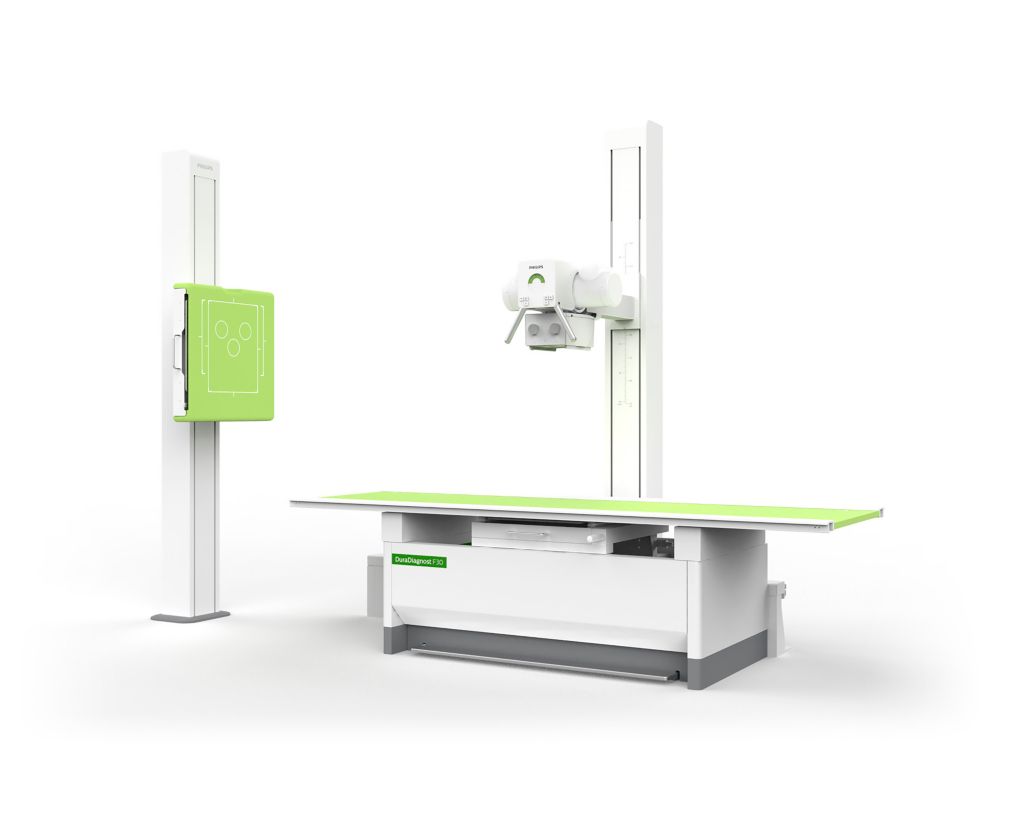

Radiography 5000 F — DuraDiagnost Rel 4
Floor-based digital radiography solution
Radiography 5000 F — DuraDiagnost Rel 4
Floor-based digital radiography solution
With digital radiography systems that reflect a sensible marriage of function and fiscal responsibility, your patients benefit from fast and smooth examinations. Your facility benefits from a reputation for quality, by offering reliable imaging services based on Philips proven technology.

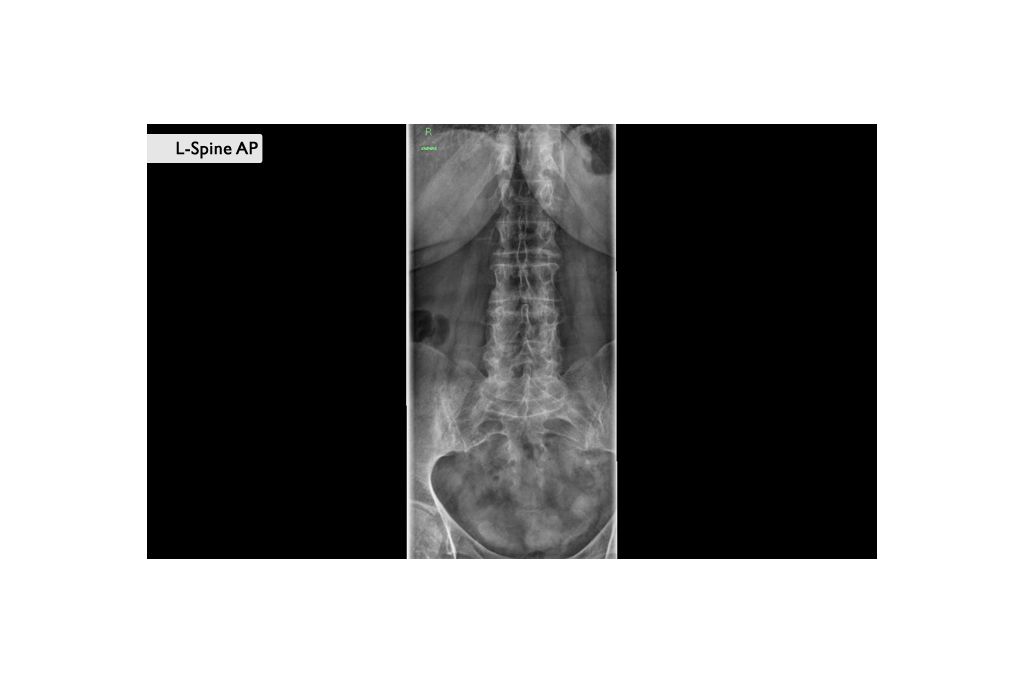

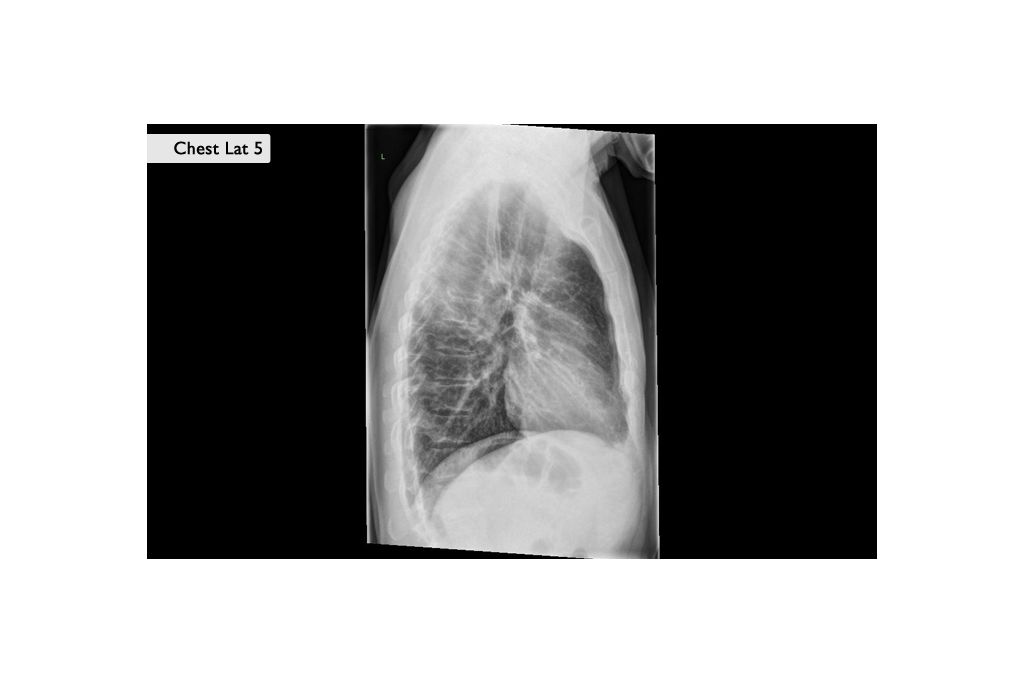

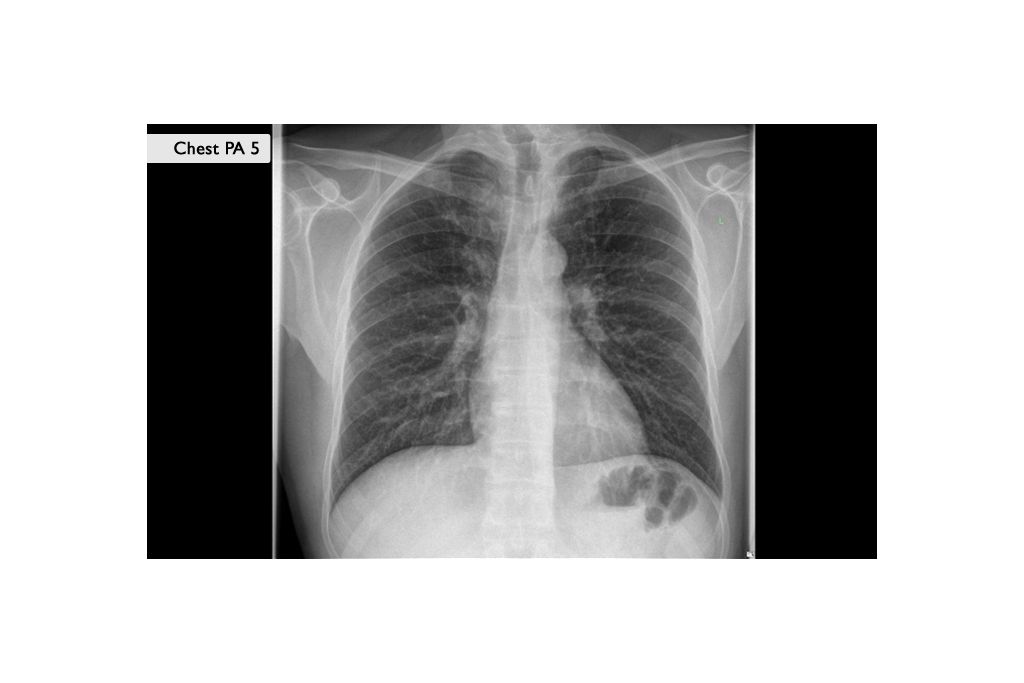

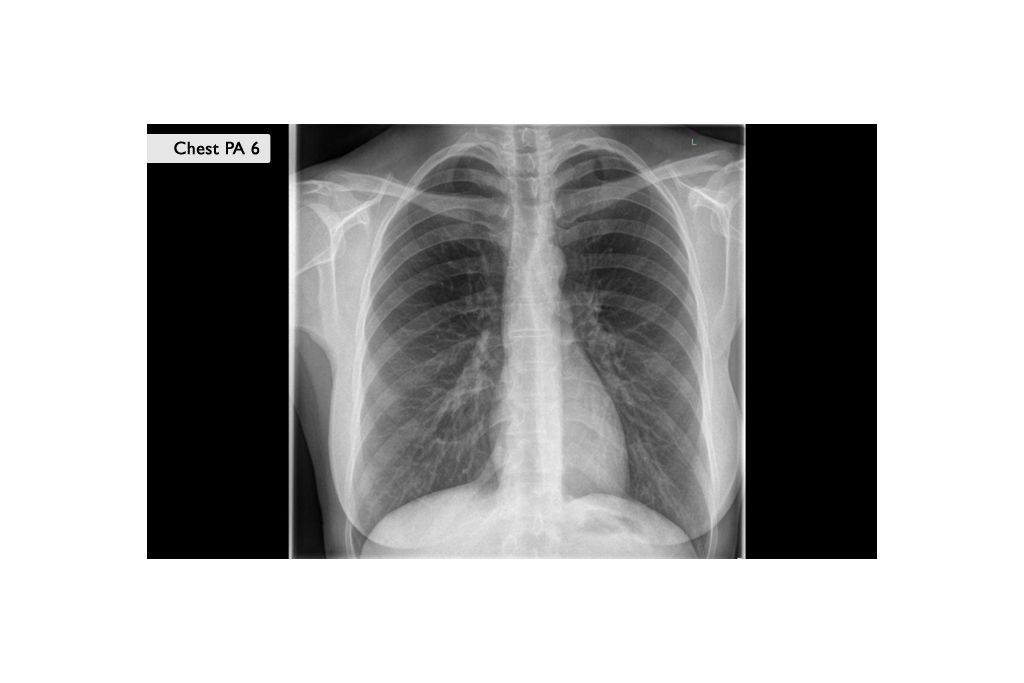

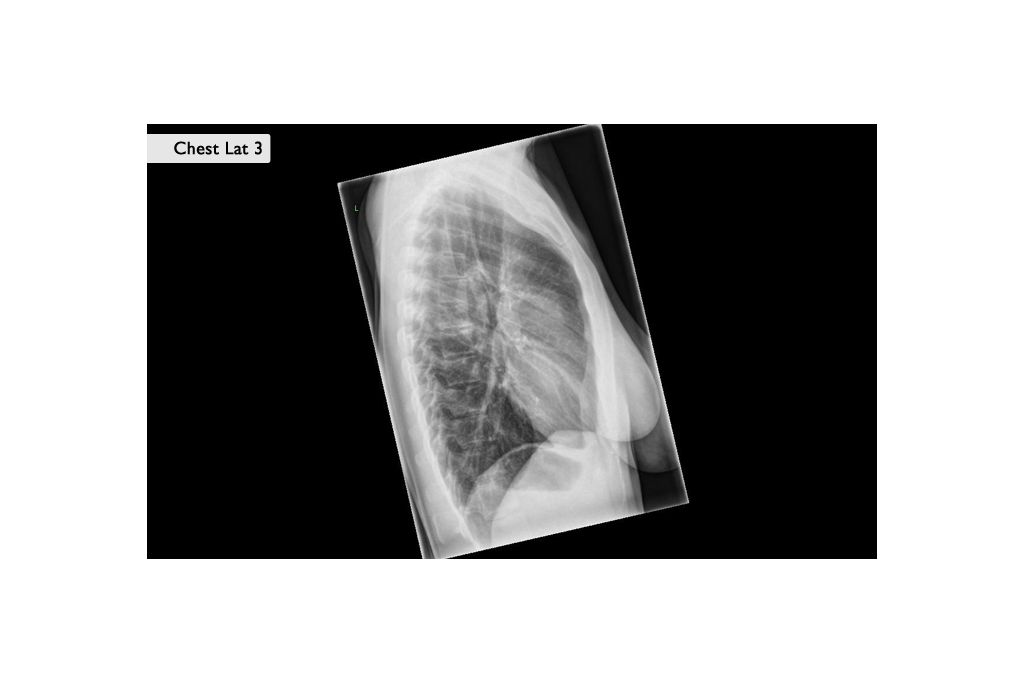

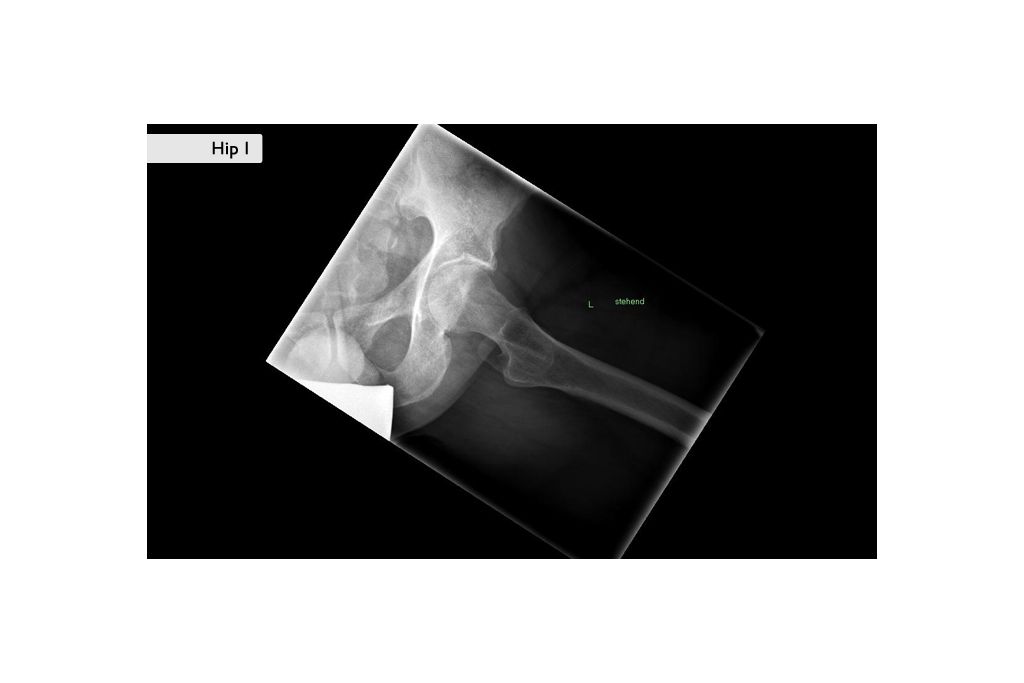

Clinical image gallery
Features
Productive solutions
As a total DXR solution provider, Philips has the right system for virtually every need. Our DuraDiagnost slips easily into the mix, delivering premium DR images in low acuity settings.
Eleva efficiency

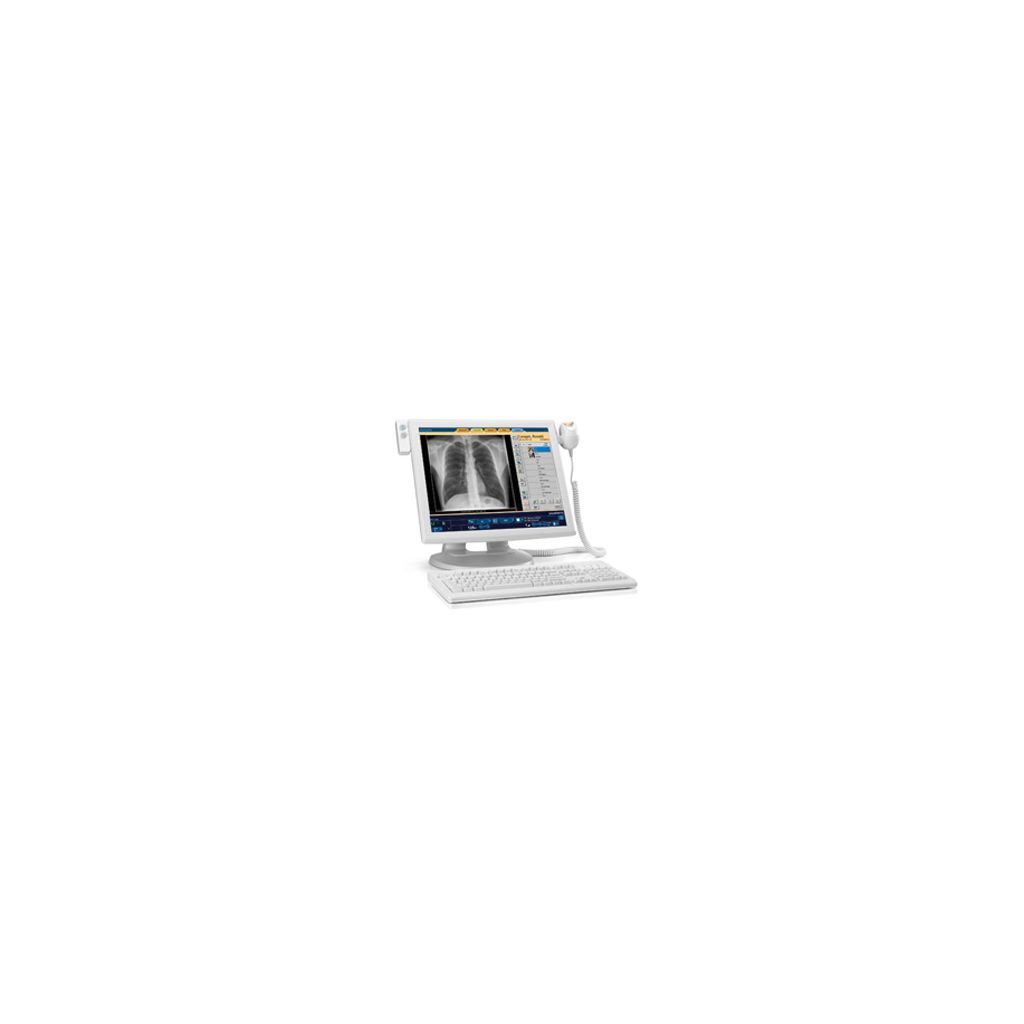

Our unique Eleva workspot has been developed with clinicians to answer the needs of radiology users. It is the same harmonized user interface found on all Philips premium digital radiography systems. The pre-settings and customized user profiles result in more automated workflow. Images are available on screen in just a few seconds.

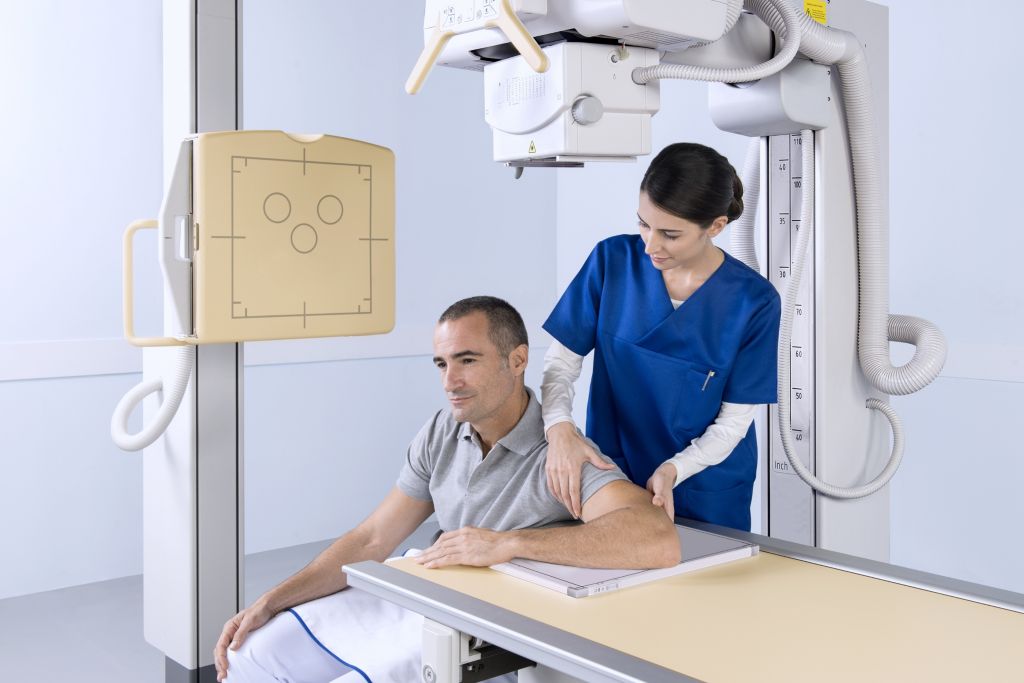

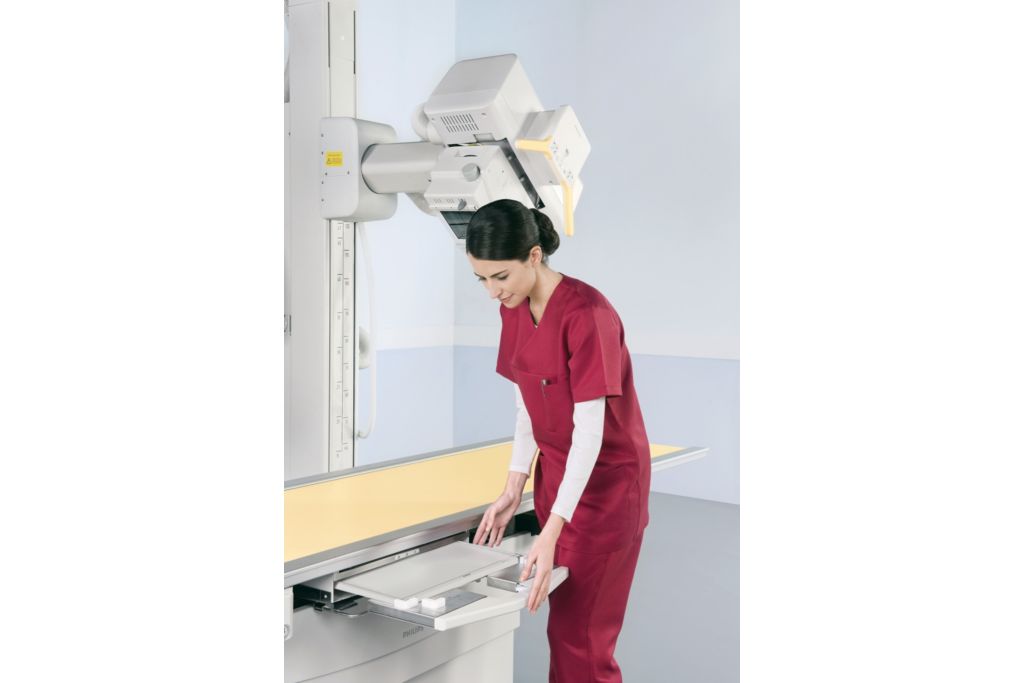

DuraDiagnost Efficiency Room
Access to an efficient workflow that supports an enhanced return on investment. Dual detector set-up supports a variety of patient examinations in a single digital radiography room.
Specifications
- X-ray generation
- High-voltage generator
- The converter generator generates high voltage equivalent to DC voltage
- Mains voltage
- 400 V / 480 V (±10%); 50 Hz or 60 Hz, 3-phase
- Max. mains resistance at 400 V
- 0.3 Ohm 0.2 Ohm
- Max. mains current at 400 V
- 112A 134A
- Nominal power (IEC)
- 50 kW 65 kW
- Max. tube voltage
- 150 kV 150 kV
- Max. tube current (at 70 kV)
- 630 mA 928 mA
- mAs product
- 0.4 mAs to 850 mAs 0.4 mAs to 850 mAs
- Exposure times
- 1ms to 4s 1ms to 4s
- Generator
- 50 kW 65 kW
- Collimator
- Type
- Manual, with light field indicator
- Timer switch
- 30 s
- Angle of aperture and rotation
- ±45°
- X-ray tube
- Anode angle
- RO1750 - 13° SRO 33100 - 13°
- Maximum tube voltage
- RO1750 - 150 kV SRO 33100 - 150 kV
- Anode heat storage capacity
- RO1750 - 220 kJ (300 kHU) SRO 33100 - 220 kJ (300 kHU)
- Assembly heat capacity
- RO1750 - 1500 kJ (2202.4 kHU) SRO 33100 - 1500 kJ (2202.4 kHU)
- Continuous anode input power
- RO1750 – 200 W SRO 33100 – 200 W
- Two focal spots
- RO1750 - 0.6 and 1.2 SRO 33100 - 0.6 and 1.2
- Maximum power with focal spot 0.6
- RO1750 - 17 kW SRO 33100 - 33 kW
- Maximum power with focal spot 1.2
- RO1750 - 50 kW SRO 33100 - 100 kW
- Minimum anode speed
- RO1750 - 3000-3600 revolutions/min. SRO 33100 - 9000-10800 revolutions/min.
- Wireless portable detector
- Type
- Digital wireless flat detector
- Scintillator
- Cesium Iodide (CsI)
- Image matrix size
- 2,330 x 2,846 pixel
- Detector size
- 35 cm x 43 cm (14" x 17")
- Active Area
- 34.48 cm X 42.12 cm (approx. 13.6" X 16.6")
- Pixel size
- 148 μm
- Detector pixels
- 6.6 Megapixel
- A/D conversion (bits)
- 16 bits
- Weight (incl. battery)
- 2.8 kg (6.2 lb)
- Eleva workspot computer
- Hard disk
- 480 GB SSD total
- RAM storage capacity
- 16 GB
- Wireless portable detector 2
- Weight (incl. battery)
- 3.1 kg (6.8 lb)
- A/D conversion (bits)
- 16 bits
- Detector pixels
- 5.7 Megapixel
- Pixel size
- 160 μm
- Active Area
- 34.5 cm x 42.5 cm (13.6" x 16.7")
- Scintillator
- Cesium Iodide (CsI)
- Type
- Digital wireless flat detector
- Image matrix size
- 2,156 x 2,653 pixel
- Detector size
- 35 cm x 43 cm (14" x 17")
- X-ray tube floor stand
- Height
- 233.25 cm (91.8")
- Room height
- min. 270 cm (106.3")
- Vertical lift maximum
- 150 cm (59.0")
- Central beam minimum upper floor
- 35 cm (137.8")
- Central beam maximum upper floor
- 185 cm (72.8")
- Rotation of tube around vertical axis
- -180° to +90°
- X-ray tube rotation
- -120° to +120°
- Source-image distance
- Max. 110 cm (43.3") for table and Max. 250 cm (98.4") for wall stand
- Fixed detector
- Pixel size
- 148 μm
- Type
- Digital flat Cesium Iodide (CsI) detector
- Image matrix size
- 2,840 x 2,874 pixel
- Detector pixels
- 8.2 Megapixel
- Detector size
- 43 cm x 43 cm (17" x 17")
- Weight
- 2.1 kg
- Active area
- 42 cm x 42.5 cm (16.5" X 16.7")
- Image resolution
- up to 3.4 Lp/mm
