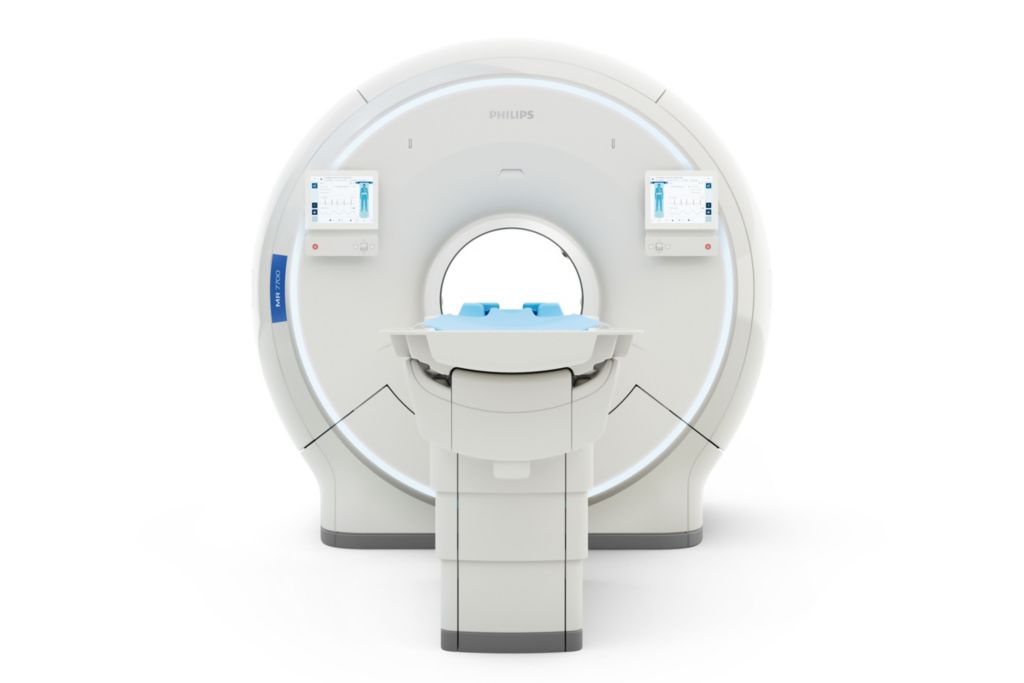

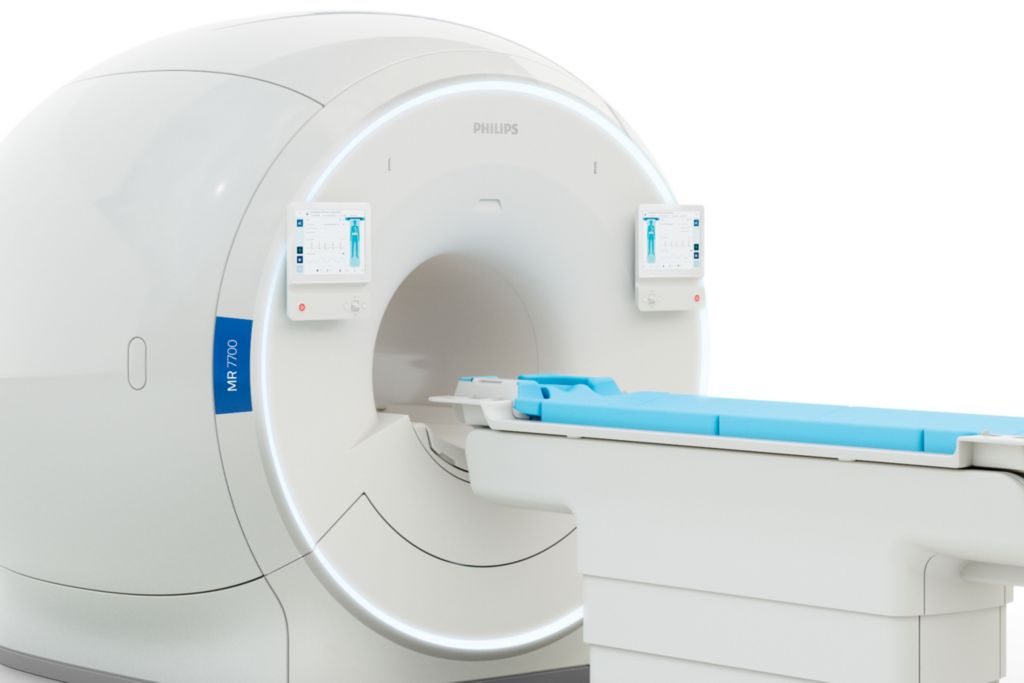

MR 7700
Unmatched performance and precision
MR 7700
Unmatched performance and precision
Experience breakthrough innovation in 3.0T imaging with the unique design of the Philips MR 7700 imaging system, enhanced with XP gradients and artificial intelligence (AI). The system is built to address a pressing need to deliver on the clinical expectations of today, and to facilitate the most demanding research programs.
The MR 7700 provides high accuracy, power, and endurance to support confident diagnosis for every patient. It is the system of choice for highest quality diffusion imaging and advanced neuroscience.
Extend your scanning capabilities with a fully integrated multi-nuclei imaging and spectroscopy solution to explore new clinical pathways without sacrificing clinical imaging workflow or wide-bore patient comfort.
What’s more? The MR 7700 promises a great experience for both users and patients through the ease-of-use features of a well-designed clinical 3.0T scanner together with a no compromise workflow. Now scientists and clinicians alike can schedule without conflict.
Clinical image gallery

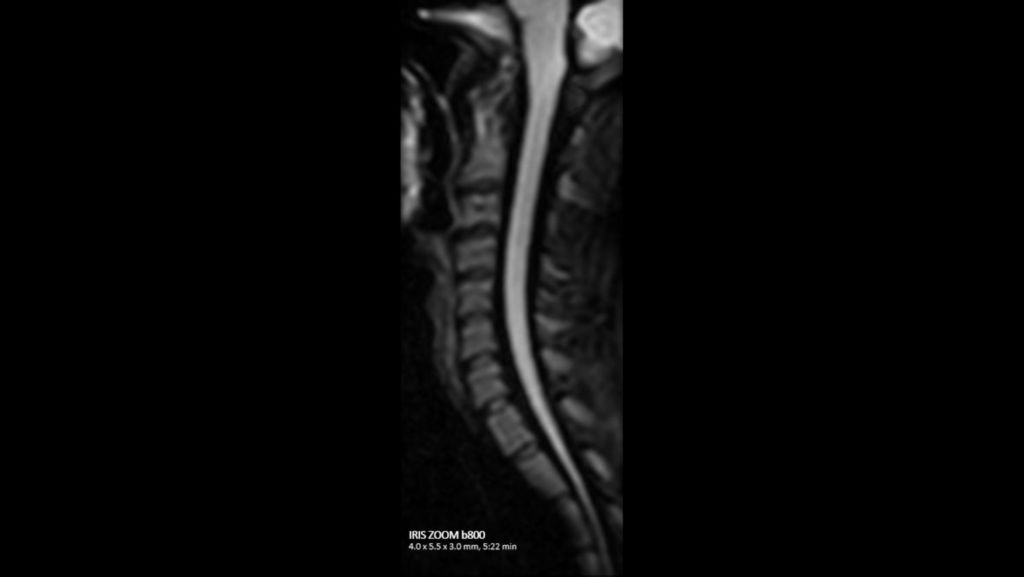

- C-spine IRIS ZOOM b800

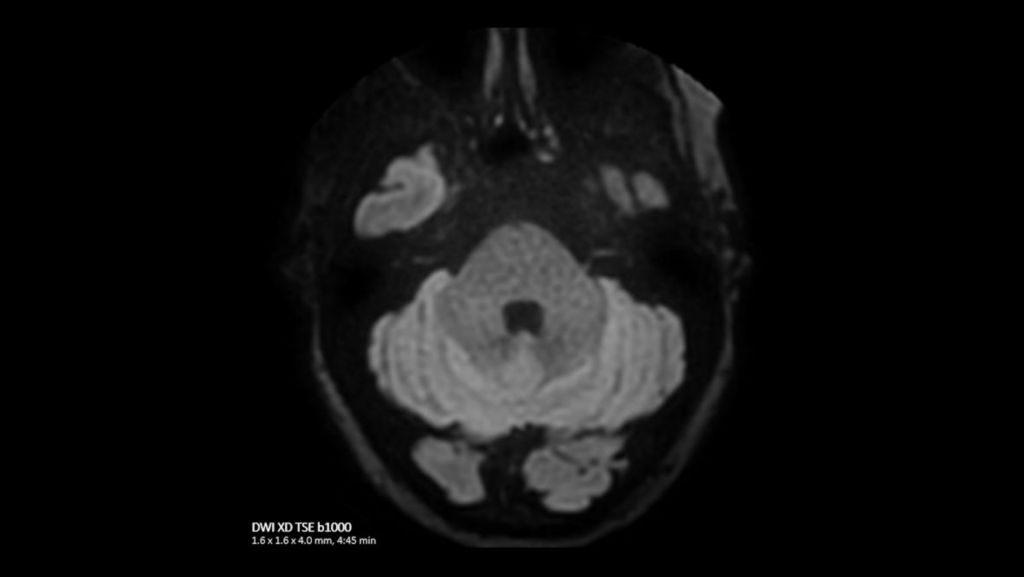

- IAC DWI XD TSE b1000

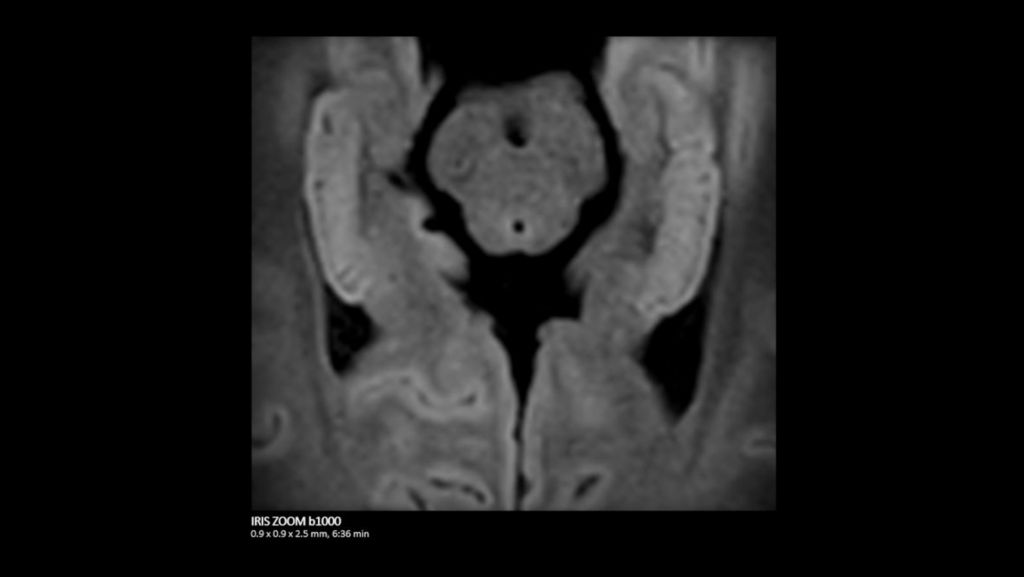

- Hippocampus IRIS ZOOM b1000

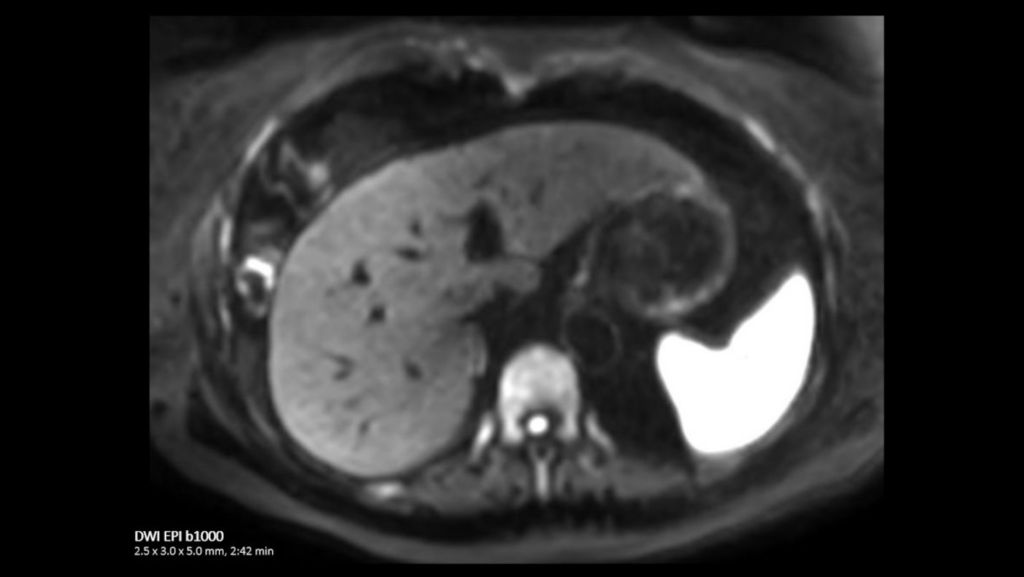

- Liver DWI EPI b1000
- Brain exam with SWIp

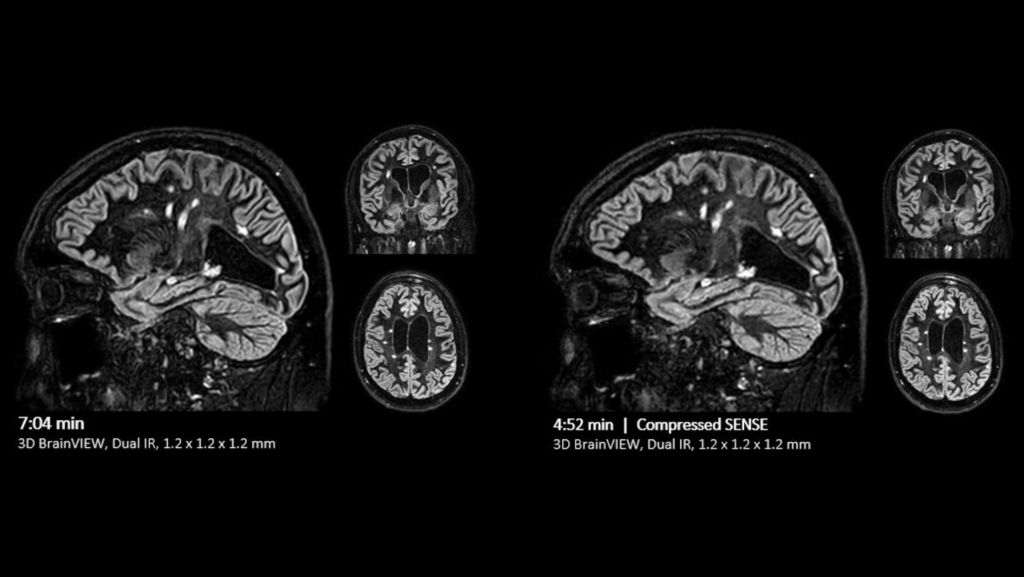

- Brain comparison Compressed SENSE

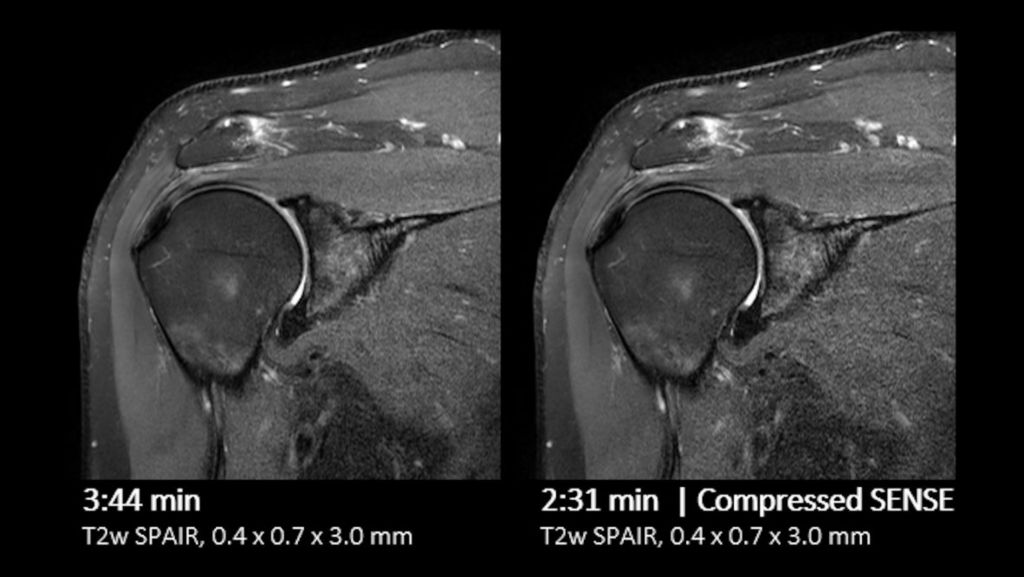

- Shoulder comparison Compressed SENSE
- Multi Nuclei Brain exam 1H and 13C

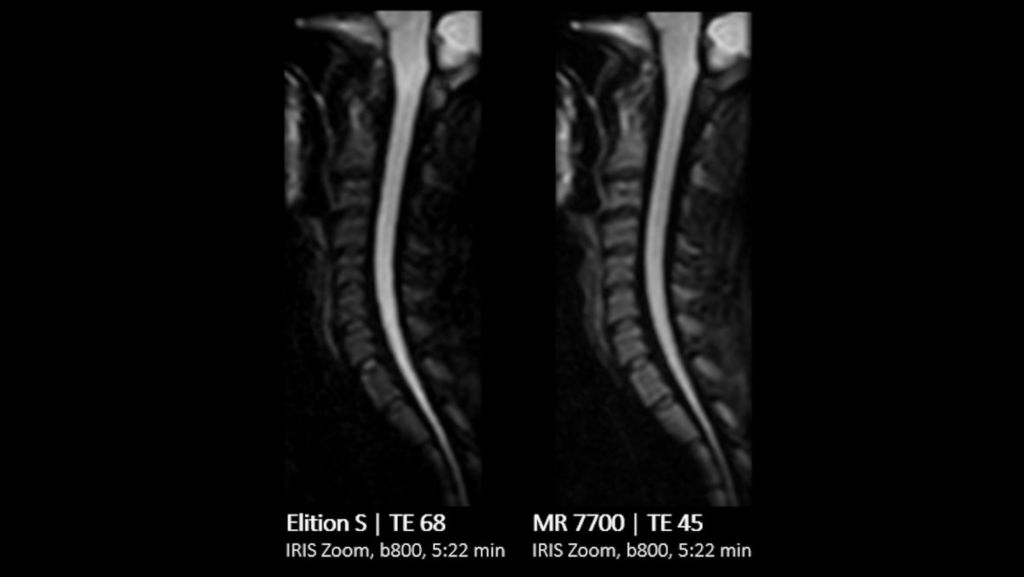

- C-Spine Comparison IRIS ZOOM b800

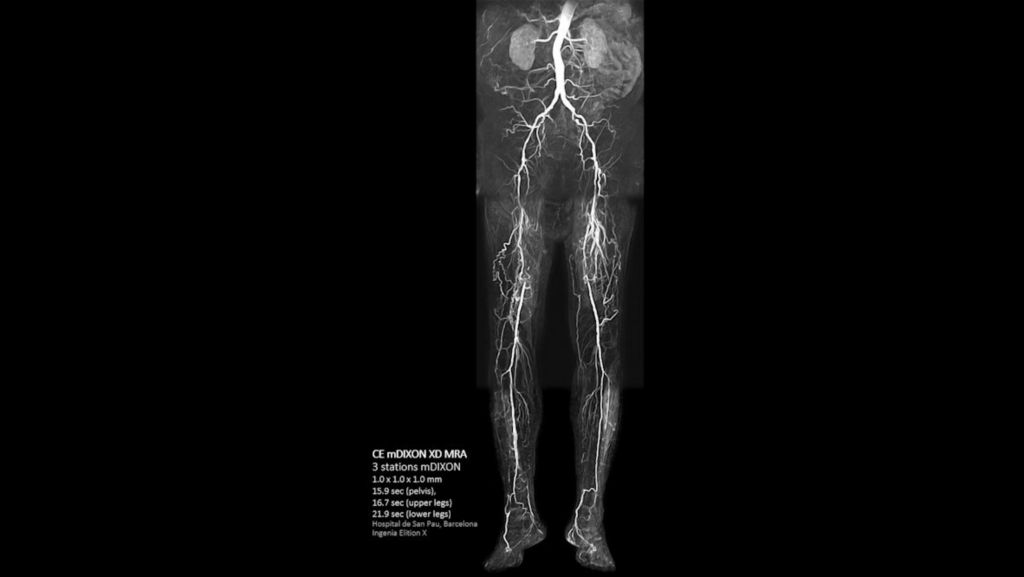

- CE MRA mDIXON XD

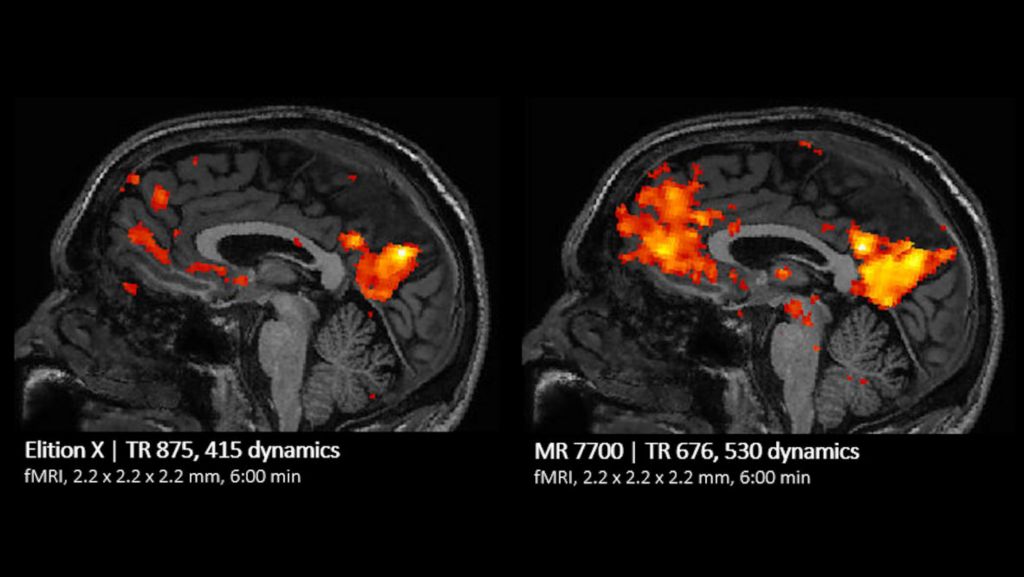

- fMRI Comparison

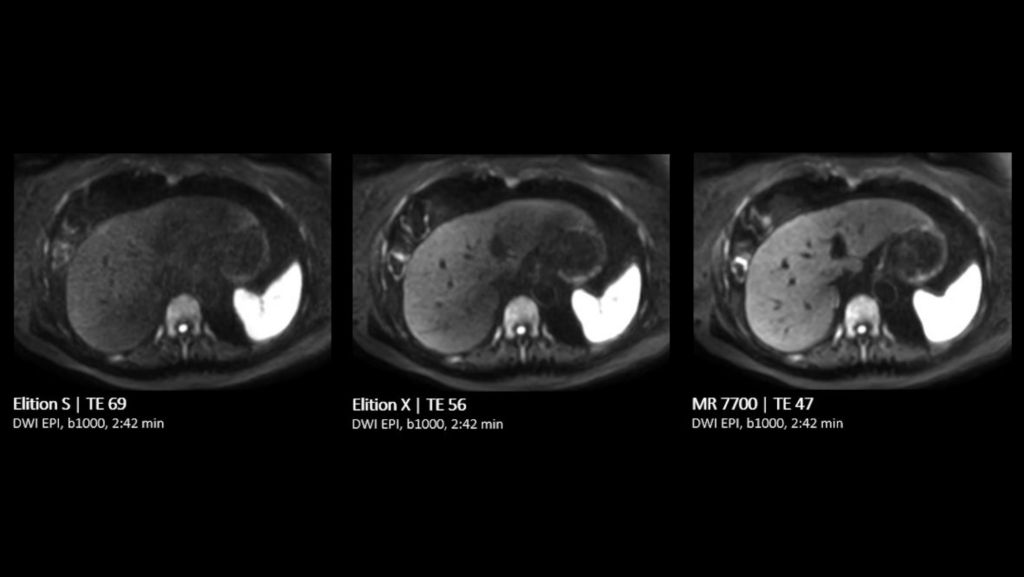

- Liver Comparison DWI EPI b1000

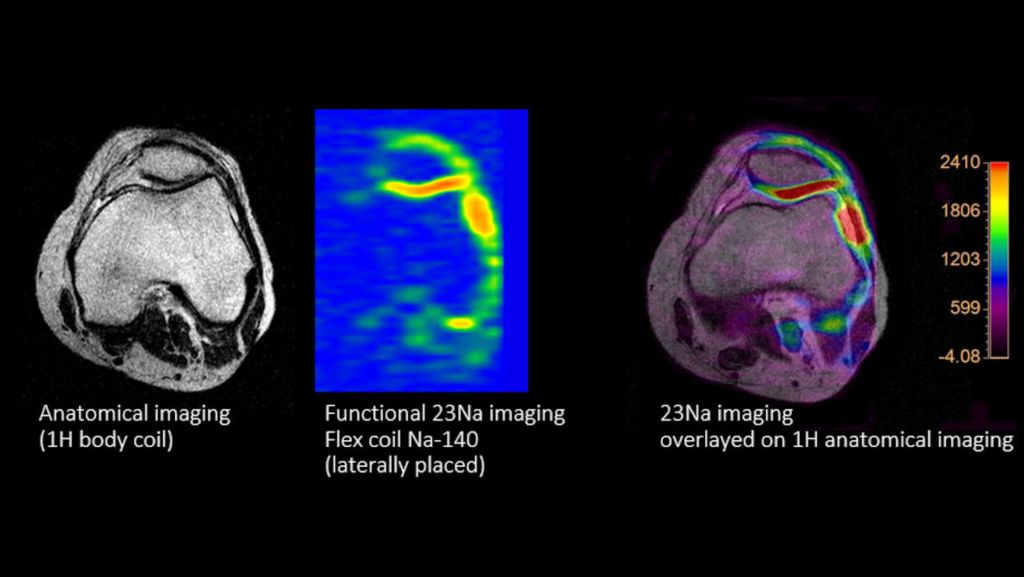

- Multi Nuclei Knee exam 1H and 23Na

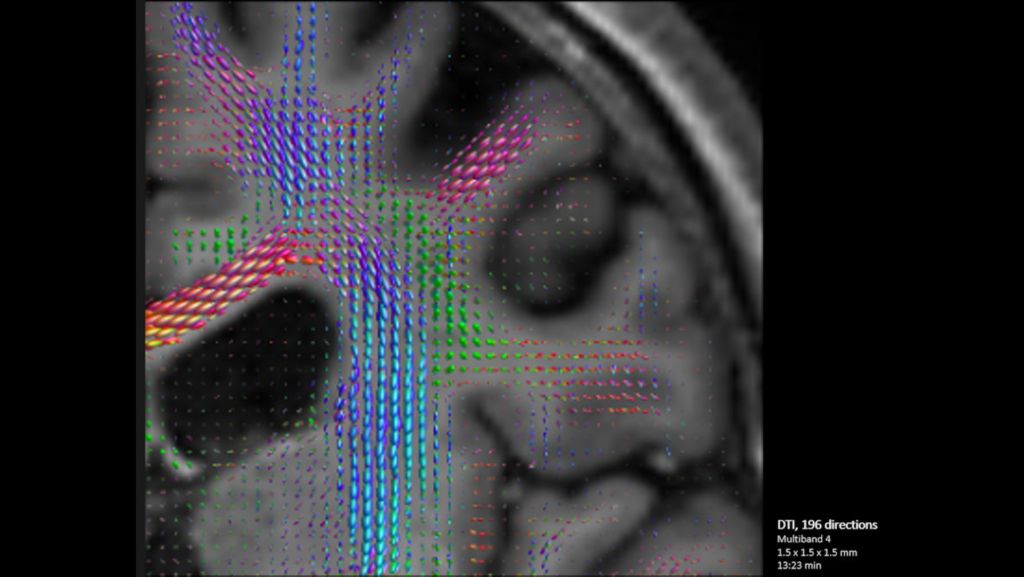

- DTI 196 directions FODs

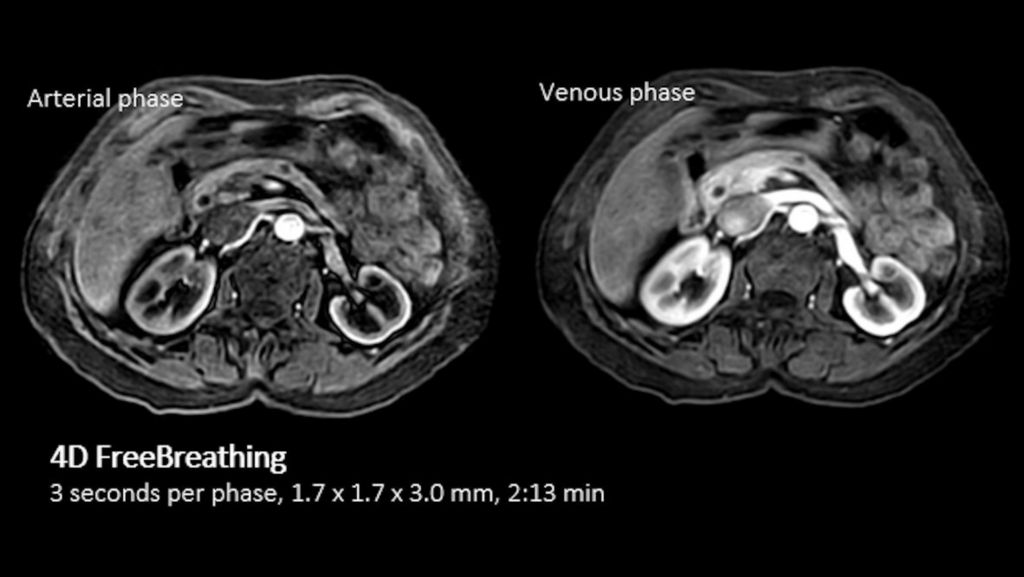

- 4D FreeBreathing
- Brain comparison MultiBand SENSE

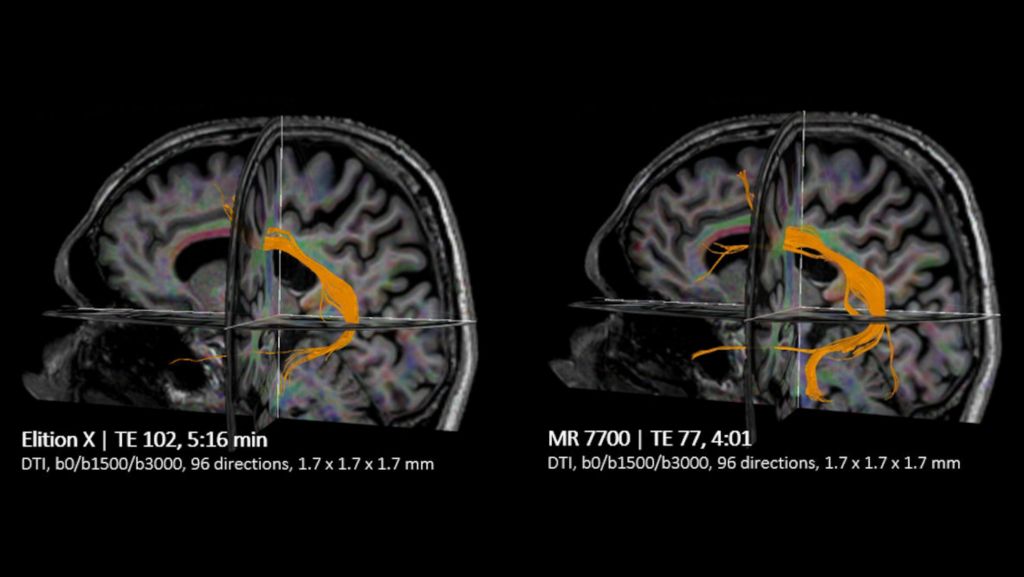

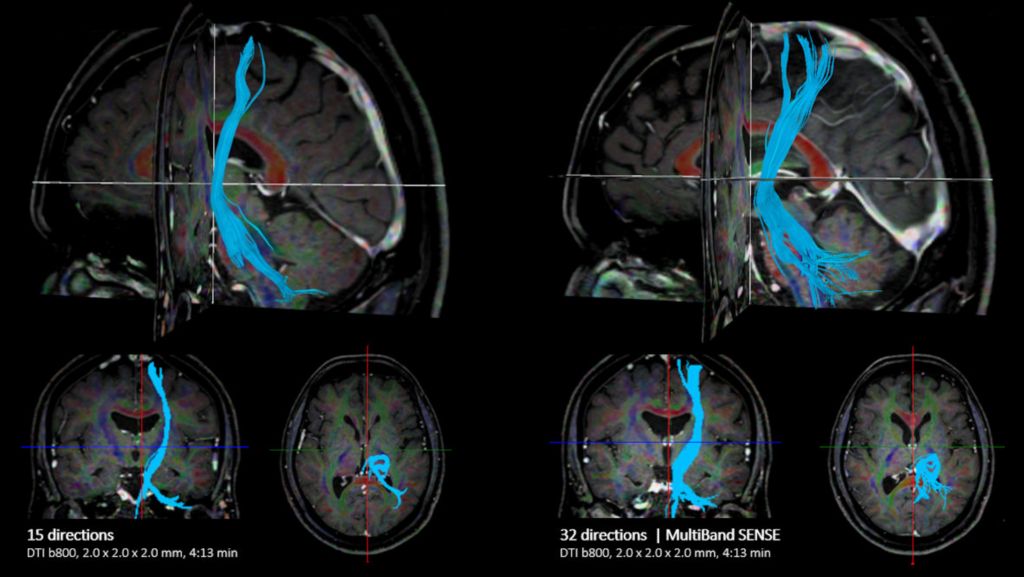

- DTI_Comparison 96 directions

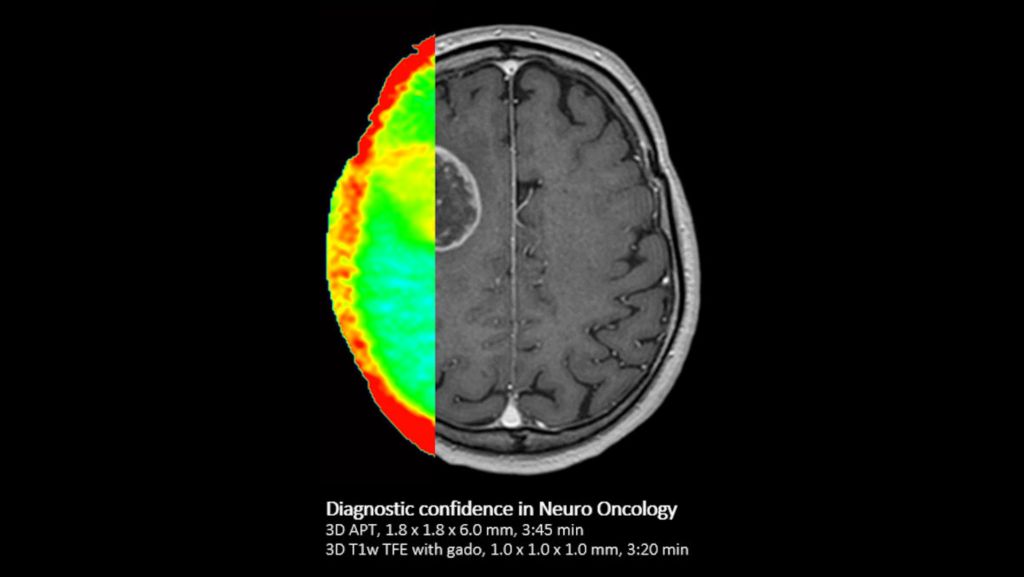

- 3D APT 3D T1w TFE with gado

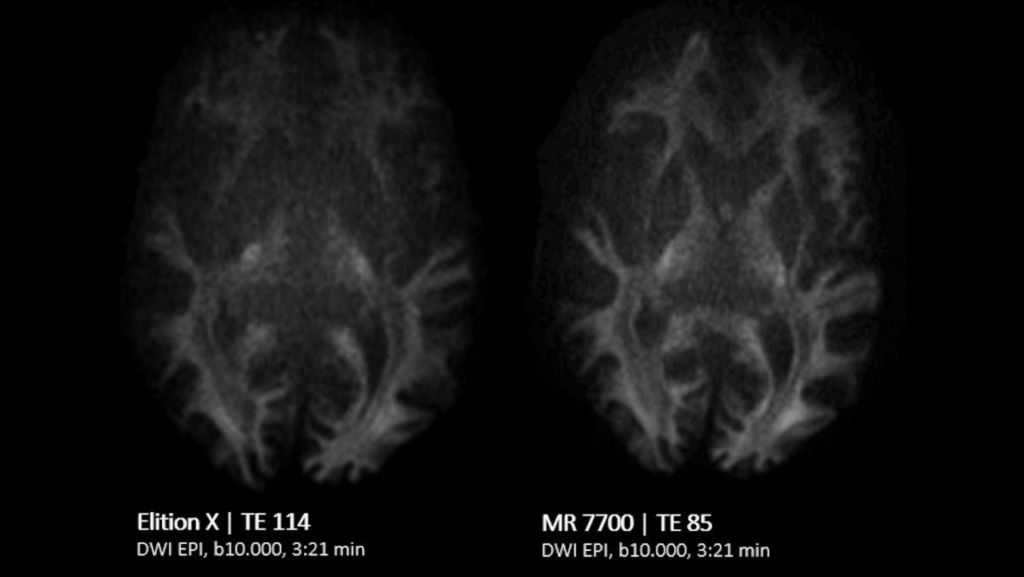

- Brain Comparison DWI EPI b10.000

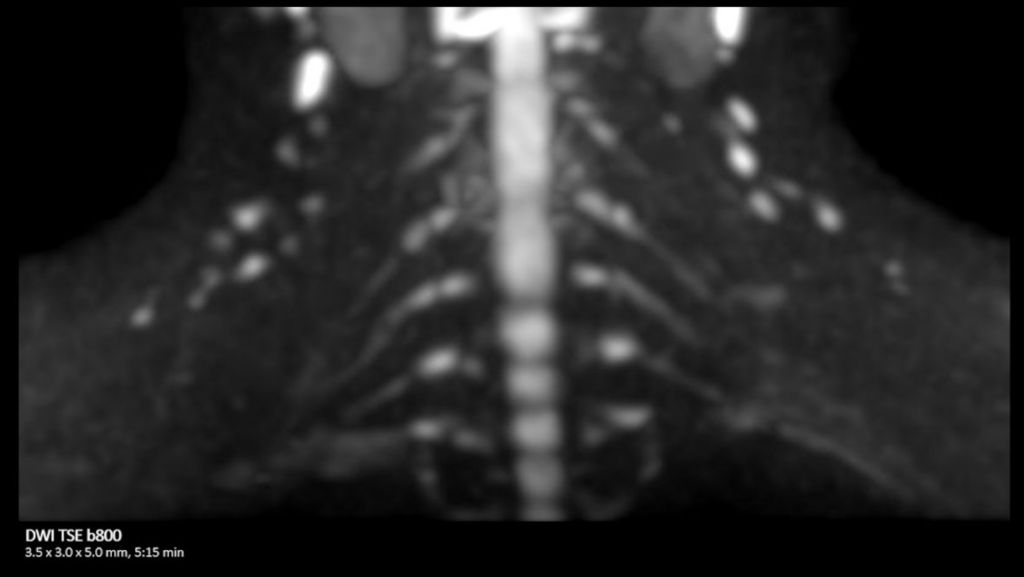

- HeadNeck DWI TSE b800

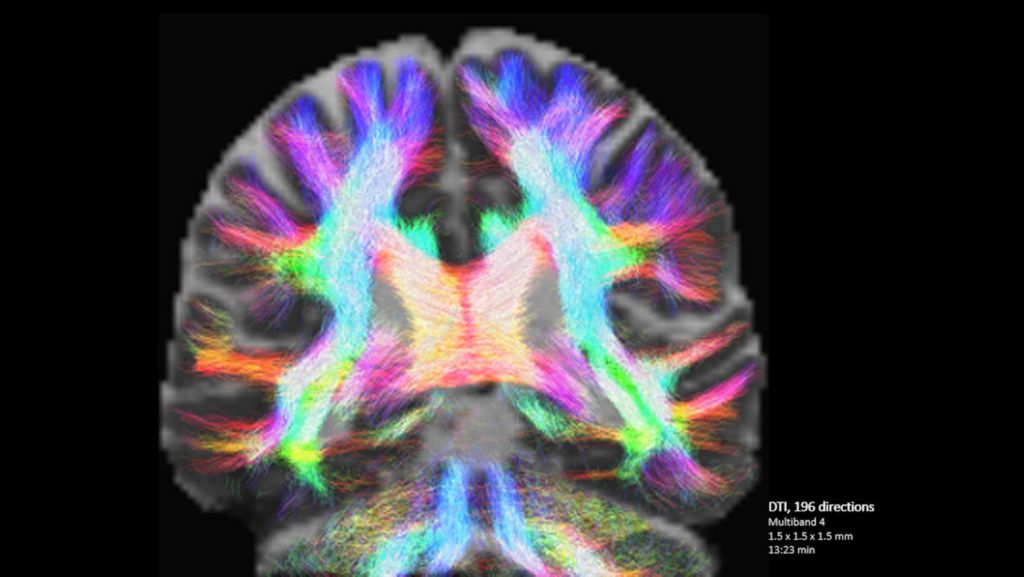

- DTI 196 directions

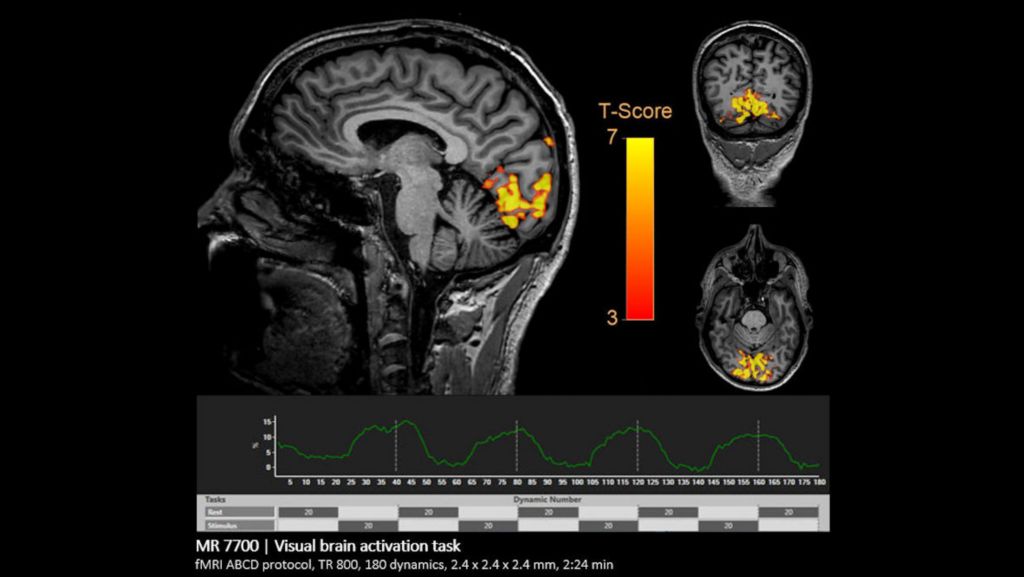

- fMRI

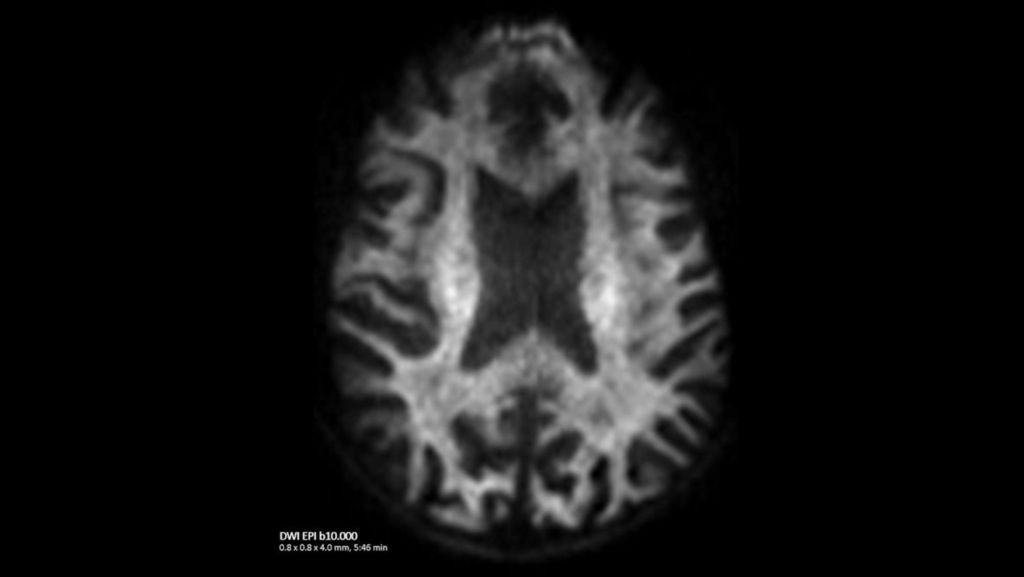

- DWI EPI b10.000

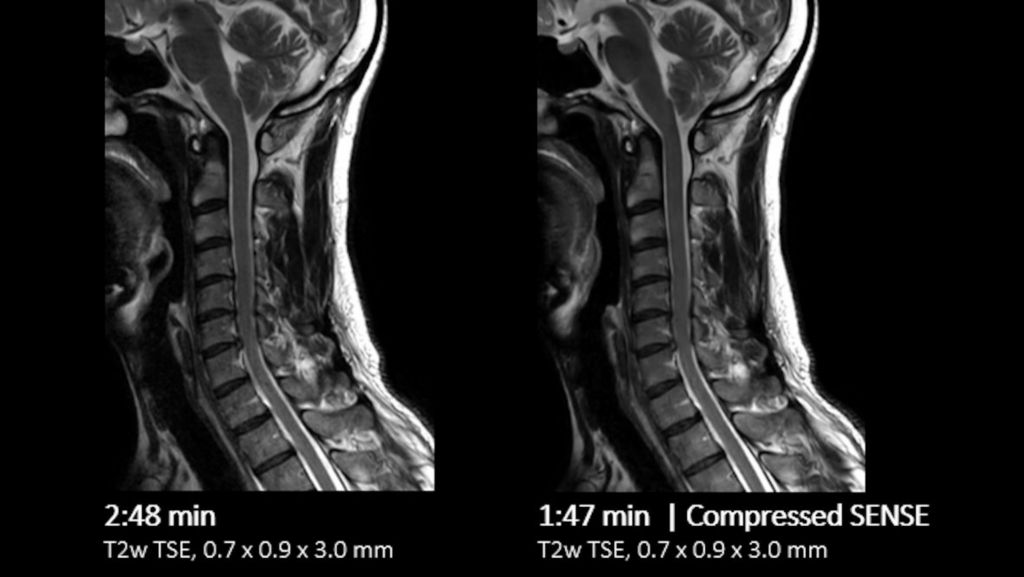

- C-Spine comparison Compressed SENSE

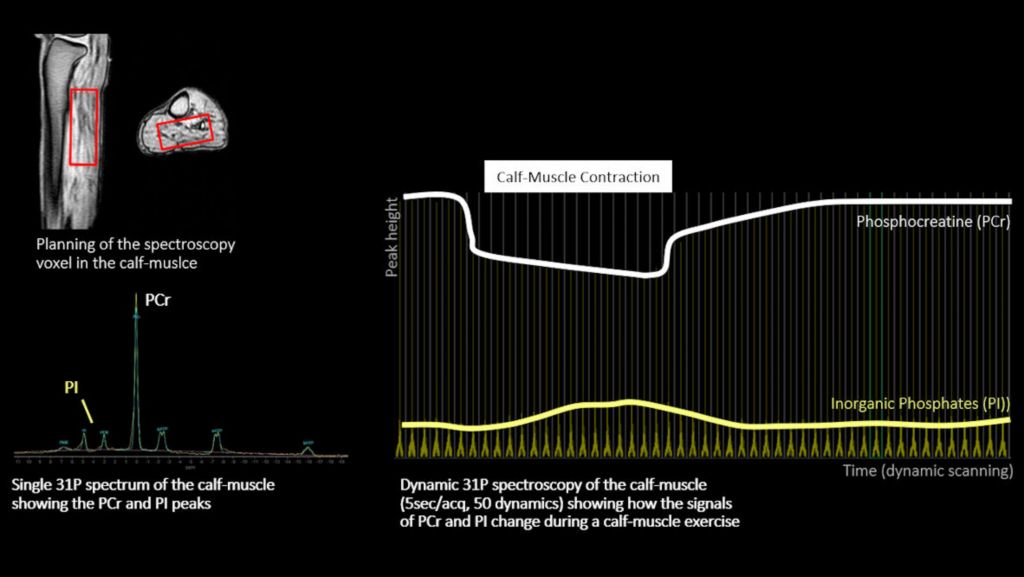

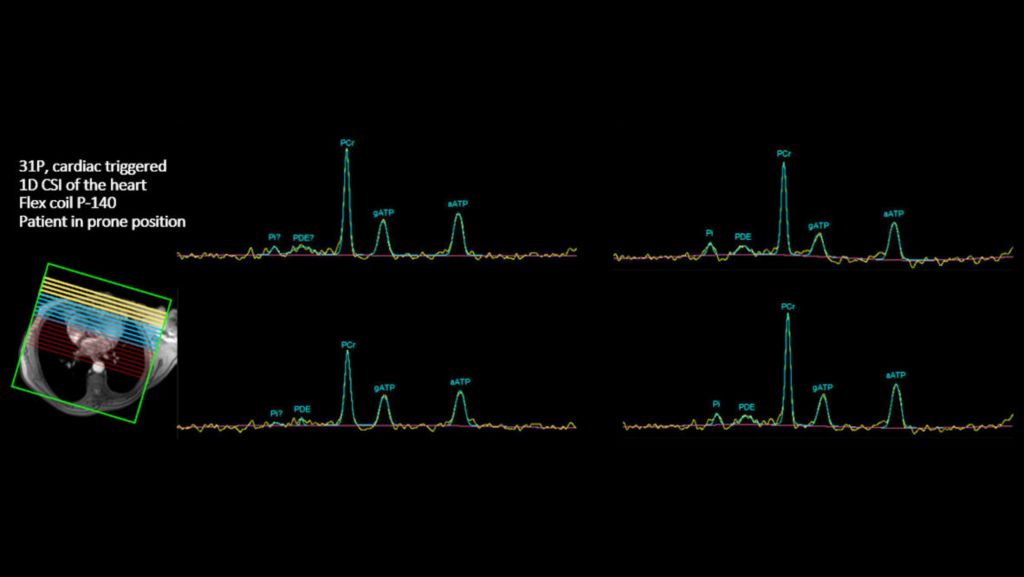

- Multi Nuclei Cardiac 31P
- Prostate DWI EPI b1000

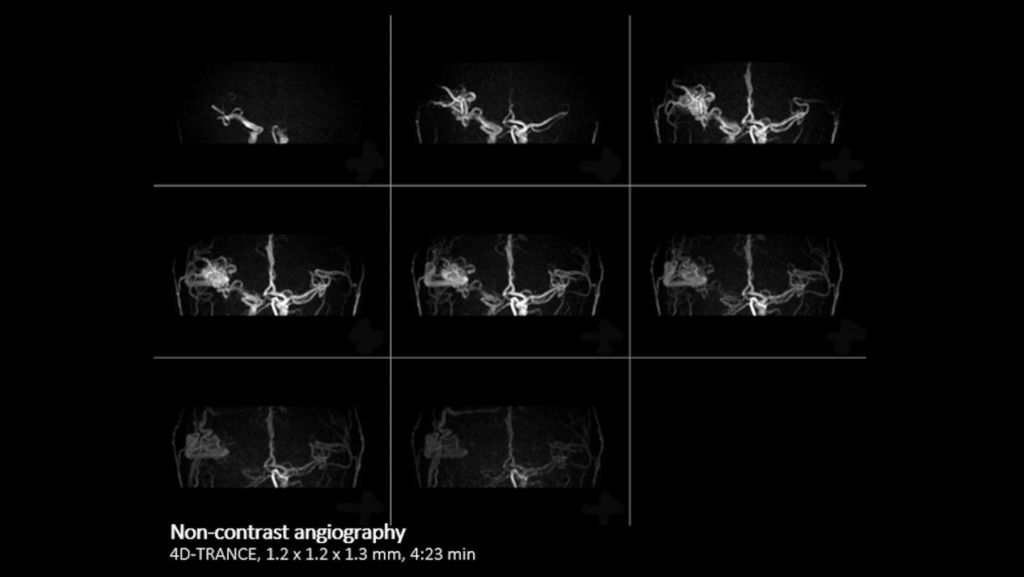

- 4D TRANCE

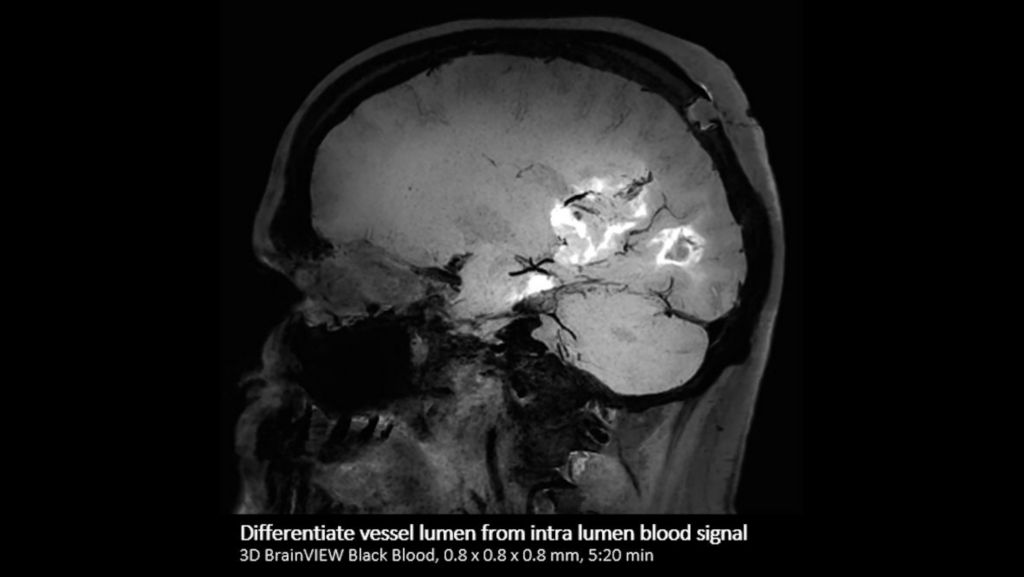

- Brain Black Blood imaging
Features
Accelerate your exams
Leverage artificial intelligence (AI) to accelerate your clinical scans nearly 3 times with no loss in image quality⁴. This method is suitable for all anatomies and can be used for all anatomical contrasts, in both 2D and 3D scanning.
MultiBand SENSE allows to either accelerate DTI imaging by up to 45%, with virtually equal image quality³, or to maintain similar scan time and acquire twice as many diffusion directions.
For fMRI, two times larger anatomical coverage can be acquired³, at similar scan times. Or gather two times more volumes per unit time, with virtually no compromise in SNR³.

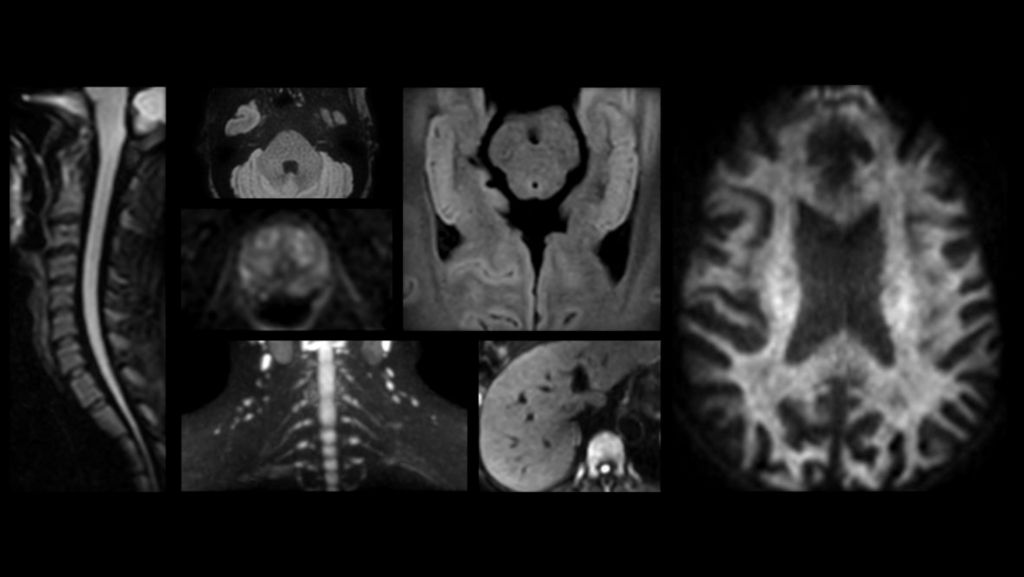

Higher diffusion IQ, for all anatomies
Benefit from up to 35% faster echo-planar (EPI) diffusion imaging¹, with the same spatial resolution.
Or achieve up to 35% higher signal-to-noise ratio (SNR), in similar scan time². The additional SNR opens the possibility to scan with increased spatial resolution, enhancing clinical confidence.
Enjoy robust suppression of motion artifacts in diffusion TSE, with up to 15% shorter scan times¹.
Exceptional gradient linearity limits distortion, even in large fields-of-view (FOV), and enables small lesions to become visible, benefiting applications like total body diffusion.
Innovative imaging solutions and workflow
Reach new levels of precision in anatomical and functional clinical imaging with a wealth of unique features such as 3D APT, black blood imaging, and susceptibility weighted imaging (SWIp).
Achieve excellent patient-centered productivity via technology to guide and coach where required, and automate when possible. These workflow efficiencies help to keep exams on schedule and create a positive staff experience.
Addition of our Ambient Experience solution will enhance your patients’ scanning experience via positive distractions by incorporating dynamic lighting, projection, and sound.
Specifications
- Magnet system
- Field strength
- 3.0T
- Bore design
- 70 cm
- Magnet weight
- 4800 kg
- Typical homogeneity V-RMS
- ≤ 0.9 ppm (at 45 cm DVS)
- HeliumSave technology
- Yes (zero boil-off)
- Maximum FOV
- 55 cm
- Cryogen boil-off rate
- 0 liter/hour (under regular scanning conditions)
- RF transmit
- Parallel RF transmission
- Yes
- Output power
- ≥ 2 x 18 kW
- Siting information
- Minimum siting requirement
- 3.4 m x 5.3 m
- Ceiling height (minimum)
- 2.56 m
- RF Receive
- Number of independent receive channels
- Channel independent
- Location of analog-to-digital converter (ADC)
- Inside the coil, close to receive channels
- Signal chain from coil to reconstructor
- Fully digital
- dStream
- Yes
- SmartWorkflow
- Guided exam set-up
- Yes
- Auto patient centering
- Yes
- Touchless respiratory-triggering
- Yes
- In-room exam start
- Yes
- ScanWise Implant
- Yes
- Automated planning and scanning
- Yes
- Automated patient coaching
- Yes
- Automated post-processing
- Yes
Related products
- The Philips Ingenia Elition solution offers cutting-edge MR imaging techniques, while setting new standards for clinical research in 3.0T imaging based on gradient- and RF designs. The Ingenia Elition delivers on superb image quality, and performs MRI exams up to 50% faster¹. Fast overall exam-time is achieved by improving patient handling setup time at the bore with the touchless guided patient setup, combined with accelerations in both 2D- and 3D scanning. Furthermore, the Ingenia Elition offers an immersive audio-visual experience to calm patients and guide them through MR exams.
- The Ingenia Elition S delivers superb image quality and performs MRI exams up to 50% faster¹. Compressed SENSE accelerates in both 2D- and 3D scanning. High productivity is achieved with the help of imaging capabilities such as SmartExam⁷, 4D Multi-Transmit and ScanWise Implant⁹. These advances have been made possible by a combination of new gradient and RF designs, plus acceleration technologies like Compressed SENSE. Furthermore, the Ingenia Elition S offers an immersive audiovisual experience to help calm patients and guide them through exams, enhancing the MR experience.
Disclaimer
1 Compared to Ingenia Elition X with Vega HP gradients.
2 Compared to Ingenia Elition X with Vega HP gradients, measured in brain white matter.
3 Compared to Philips DTI/fMRI scans without MultiBand SENSE.
4 Compared to Philips SENSE imaging.
*Caution: Investigational device for imaging with fluorine (19F). Limited by federal (or United States) law to investigational use. Clinical imaging with this nucleus requires usage of a cleared drug. No FDA-cleared drugs are currently available for this nucleus.
