Single pivot arm (250mm) mounting options
Mounting solution
Single pivot arm (250mm) mounting options
Mounting solution
Learn more about single pivot arm (250mm) wall mounting options, from ITD, for the IntelliVue MX700, and MX800 patient monitors.
Features
ITD part no. TH.2120.991

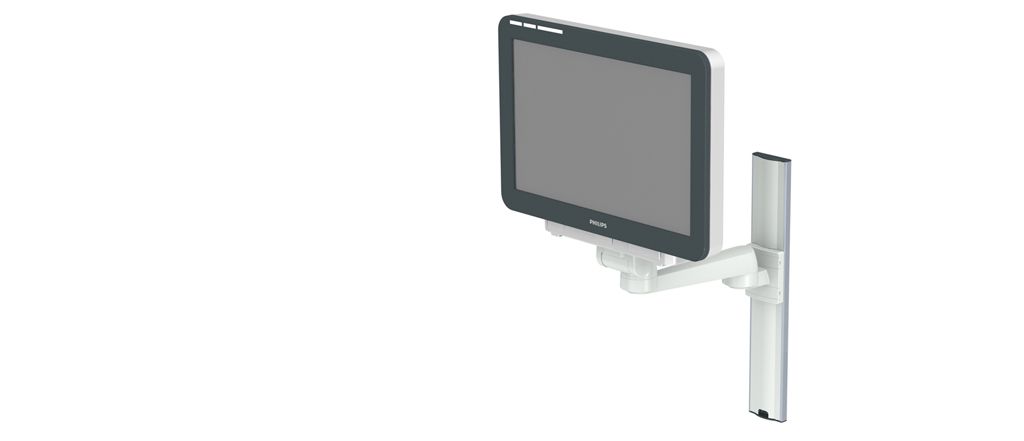

Single pivot arm on pole, with diameter 35-38mm. The mounting kit includes: adapter for pole D 35-38mm, arm length 250mm; tilt and swivel unit with an adapter for IntelliVue MX700, and MX800 patient monitors.
ITD part number TH.2122.991
Single pivot arm on GCX wall channel. The mounting kit includes: adapter for GCX wall channel; arm length 250mm, tilt and swivel unit with adapter for IntelliVue MX700, and MX800 monitors.
ITD part number: TH.2160.991
Single pivot arm on horizontal standard runner. The mounting kit includes: adapter for ITD horizontal standard runner, arm length 250mm, tilt and swivel unit with an adapter for IntelliVue MX700 and MX800 patient monitors.
Specifications
- Specifications
- Tested to
- DIN EN 60601-1:2006
- Maximum load, arm
- 23 kg (50.6 lbs)
- Maximum load, tilt and swivel unit
- 14 kg (30.8 lbs)
- Finish
- RAL 7035; light grey, powder coated
