Single pivot arm
Mounting solution
Single pivot arm
Mounting solution

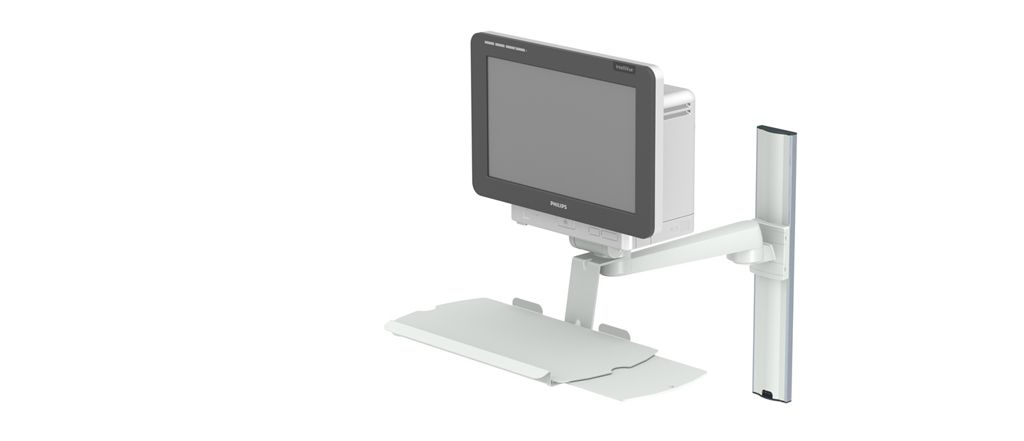

Learn more about single pivot arm (325mm) wall mounting options with a keyboard holder, from ITD, for the IntelliVue MX500 and MX550 patient monitors.
Features
ITD part number: TH.2151.991
Single pivot arm with keyboard holder on horizontal standard runner, rapid mounting. The mounting kit includes: adapter for ITD horizontal standard runner rapid mounting; arm length 325mm; tilt and swivel unit with an adapter for IntelliVue MX500 and MX550 patient monitors, keyboard holder.
ITD part number TH.2155.991
Single pivot arm with keyboard holder on GCX wall channel. The mounting kit includes: adapter for GCX wall channel; arm length 325mm, tilt and swivel unit with adapter for IntelliVue MX500 and MX550 patient monitors, keyboard holder.
ITD part no. TH.2153.991
Single pivot arm with keyboard holder on pole, with diameter 35-38mm. The mounting kit includes: adapter for pole D 35-38mm, arm length 325mm; tilt and swivel unit with an adapter for IntelliVue MX500 and MX550 patient monitors, keyboard holder.
Specifications
- Specifications
- Tested to
- DIN EN 60601-1:2006
- Maximum load, arm
- 23 kg (50.6 lbs)
- Maximum load, tilt and swivel unit
- 14 kg (30.8 lbs)
- Maximum load, keyboard holder
- 5 kg (11 lbs), distributed load.
- Finish
- RAL 7035; light grey, powder coated
