IntelliVue MP40/MP50 ITD Variable Height Wall Mount
Mounting solution
IntelliVue MP40/MP50 ITD Variable Height Wall Mount
Mounting solution
Learn more about the height adjustable arms available for Philips IntelliVue MP40/MP50 monitors.
Features

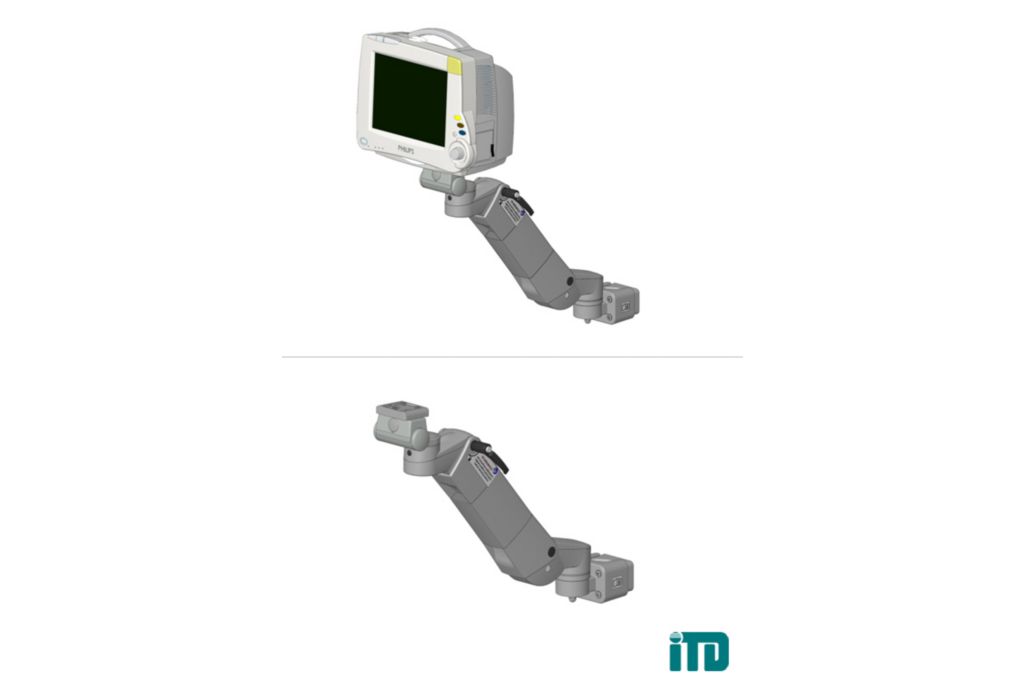

Height, adjustable arm with extension on ITD support extrusion
ITD part no. HA.2083.903 and ITD part no. HA.2048.903 Kits include:
Adapter for ITD support extrusion; arm, length 300mm (for ITD part no. HA.2083.903) and 400mm (for ITD part no. HA.2048.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MP40/50.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated.)
Height, adjustable arm with extension on horizontal standard runner
ITD part no. HA.2084.903 and ITD part no. HA.2085.903 Kits include:
Adapter for horizontal standard runner; arm, length 300mm (for ITD part no. HA.2084.903) and 400mm (for ITD part no. HA.2085.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MP40/50.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for horizontal standard runner: RAL 7035 light grey, powder-coated.)
Height, adjustable arm on GCX wall channel
ITD part no. HA.2152.903 and ITD part no. HA.2153.903 Kits include:
Adapter for GCX wall channel; arm, length 300mm (for ITD part no. HA.2152.903) and 400mm (for ITD part no. HA.2153.903); tilt and swivel unit with an adapter for Philips IntelliVue MP40/50.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized.)
