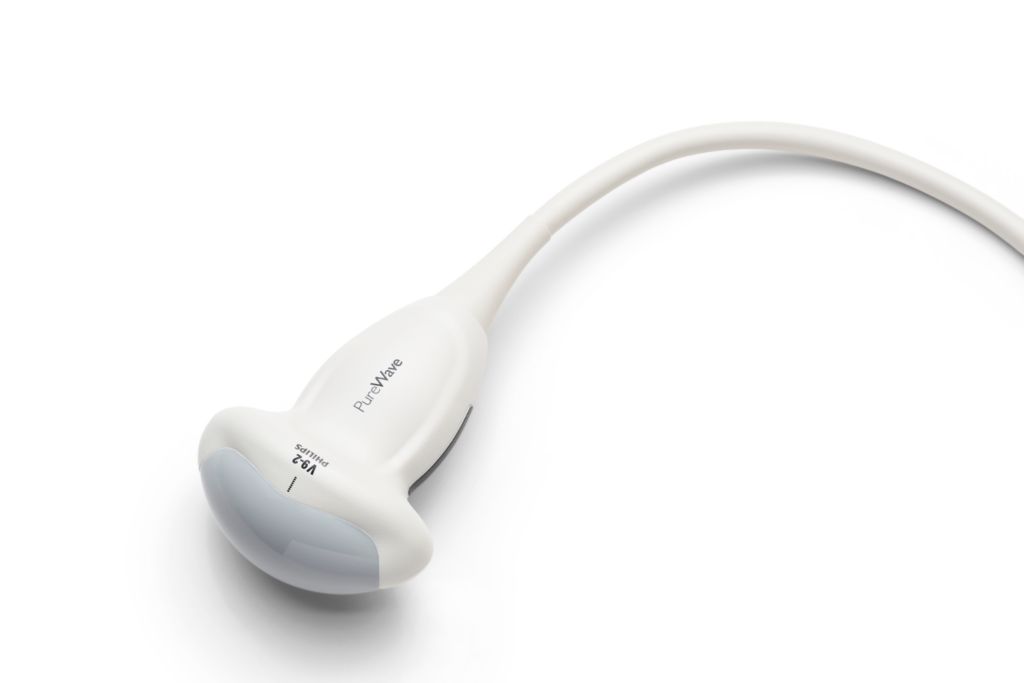

V9-2 Transducer
Curved mechanical volume array transducer
V9-2 Transducer
Curved mechanical volume array transducer
The lightweight, ergonomic design of Philips V9-2 transducer allows for exceptional fetal imaging and visualization across a wide variety of patient types. This transducer offers advanced 3D/4D imaging support, including TrueVue, MPR Touch and FlexVue capabilities. In additon, MicroFlow Imaging capabilities helps overcome many of the technical barriers associated with conventional methods to aid in detection of small vessel blood flow with high resolution and minimal artifact.
Clinical image gallery
- Placenta CPA with Flow Viewer
- Fetal Heart CPA with Flow Viewer
- Fetal Lung Perfusion Color Flow with Flow Viewer
- Expanded view of the fetal spine using the V9-2 transducer and TrueVue
Specifications
- Specifications
- Technology
- PureWave
- Number of elements
- 192
- Frequency range
- 9 - 2
- Array Type
- Curved mechanical volume
- Aperture
- 52.61
- Field of view
- 100°
- Volume of field of view
- 100° x 101°
- Applications
- Obstetrical and gynecological
- Biopsy capable
- Yes
- Image Fusion Navigation capable
- No
Disclaimer
*Based on a sample size of 26 users
