C9-4v Transducer
Broadband tightly curved array transducer
C9-4v Transducer
Broadband tightly curved array transducer
The C9-4v Curved array transducer has 9 to
4 MHz extended operating frequency range
and a 181-degree field of view. It supports
2D, color, PW Doppler and Color Power
Angio imaging for endovaginal applications.
Clinical image gallery
- Ovary ultrasound image shown with Flow Viewer using C9-4v transducer
- Gyn Pelvis ultrasound image shown with CPA using C9-4v transducer

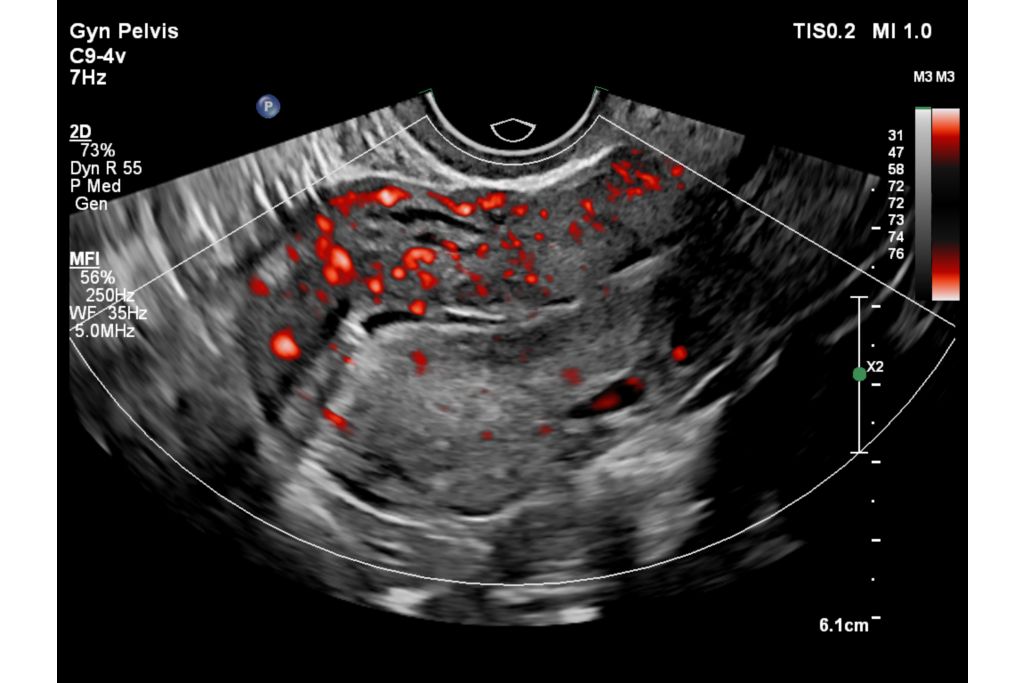

- Gyn Pelvis ultrasound image shown with MFI using C9-4v transducer
- Gyn Pelvis ultrasound image shown with CPA using C9-4v transducer
- Gyn Pelvis ultrasound image shown using C9-4v transducer
- Gyn Pelvis ultrasound image shown with color flow using C9-4v transducer
- Gyn Pelvis ultrasound image shown with MFI using C9-4v transducer
- Uterus shown with MFI using C9-4v transducer
Specifications
- Specifications
- Technology
- Broadband
- Number of elements
- 128
- Frequency range
- 9 - 4
- Array Type
- Tightly curved
- Aperture
- 26.2
- Field of view
- 181°
- Applications
- Endocavitary applications, including gynecology, fertility, obstetrics and urology
- Biopsy capable
- Yes
- Image Fusion Navigation capable
- No
