EPIQ 7

Ultrasound system for vascular
Ultrasound systems and software
EPIQ 7 features an uncompromised level of clinical performance to meet the challenges of today’s most demanding vascular practices.

Clinical image gallery

  • Superficial varicose veins
    Superficial varicose veins
  • Renal vasculature
    Renal vasculature
  • Artery and vein with MicroCPA
    Artery and vein with MicroCPA
  • Common carotid artery plaque
    Common carotid artery plaque
  • Abdominal aorta
    Abdominal aorta
  • Superficial venous thrombosis
    Superficial venous thrombosis
  • Common carotid artery
    Common carotid artery
  • Spenic vasculature with MicroCPA
    Spenic vasculature with MicroCPA
  • Liver technically difficult patient
    Liver technically difficult patient
  • Superficial thrombophlebitis
    Superficial thrombophlebitis
  • Ulnar artery
    Ulnar artery
  • Carotid bulb plaque
    Carotid bulb plaque
  • Common cartotid artery
    Common cartotid artery

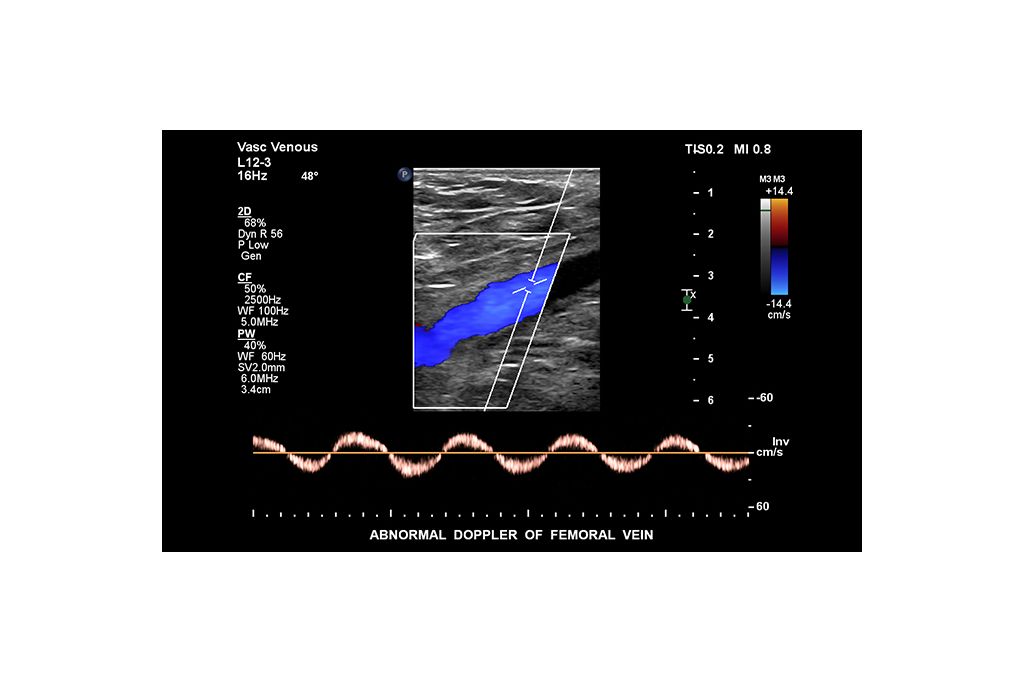

  • Abnormal Doppler of femoral vein
    Abnormal Doppler of femoral vein
  • Venous dialysis access graft
    Venous dialysis access graft
  • Inferior vena cava duplicate renal arteries
    Inferior vena cava duplicate renal arteries
  • Carotid artery bulb
    Carotid artery bulb
  • Portal vein / hepatic artery
    Portal vein / hepatic artery
  • Common femoral atery bifurcation
    Common femoral atery bifurcation
  • Abdominal aorta
    Abdominal aorta
  • Liver capsule vasculature MicroCPA
    Liver capsule vasculature MicroCPA
  • Posterior tibial veins from a technically difficult patient.
    Posterior tibial veins from a technically difficult patient.
  • Renal artery with MicroCPA
    Renal artery with MicroCPA
  • Carotid bifurcation
    Carotid bifurcation
  • Carotid bifurcation
    Carotid bifurcation
Features
MaxVue high definition display
At the touch of a button, MaxVue high-definition display brings extraordinary visualization of anatomy with 1,179,648 additional image pixels compared to a standard 4:3 display format mode. MaxVue enhances ultrasound viewing and provides 38% more viewing area to optimize the display of dual, side/side, biplane, and scrolling imaging modes.
MaxVue high definition display
nSIGHT Imaging is a totally different approach to ultrasound
Philips proprietary nSIGHT Imaging architecture is a totally different approach to forming ultrasound images. Unlike conventional systems that form the image line by line, nSIGHT creates images with optimal resolution down to the pixel level. nSIGHT Imaging incorporates the use of a precision beamformer along with powerful massive parallel processing. This extraordinary architecture captures an enormous amount of acoustic data and then reconstructs in real time optimally focused beams, creating precise resolution for every pixel in the image.
xMatrix for leading-edge ultrasound transducer technology
No other premium ultrasound system can run the complete suite of the world’s most innovative ultrasound transducers. With the touch of a button, xMatrix offers all modes in a single transducer: 2D, 3D/4D, Live xPlane, Live MPR, MPR, Doppler, color Doppler, and CPA.
Specifications
  • System dimensions
    Width
    60.6 cm
    Height
    146-171.5 cm
    Depth
    109.2 cm
    Weight
    104.3 kg
  • Control panel
    Monitor size
    54.6 cm
    Degrees of movement
    180 degrees
    Height adjustment
    25.4 cm

Documentation

Eco Passport EPIQ 7 and 5
PDF|165.56 KB
